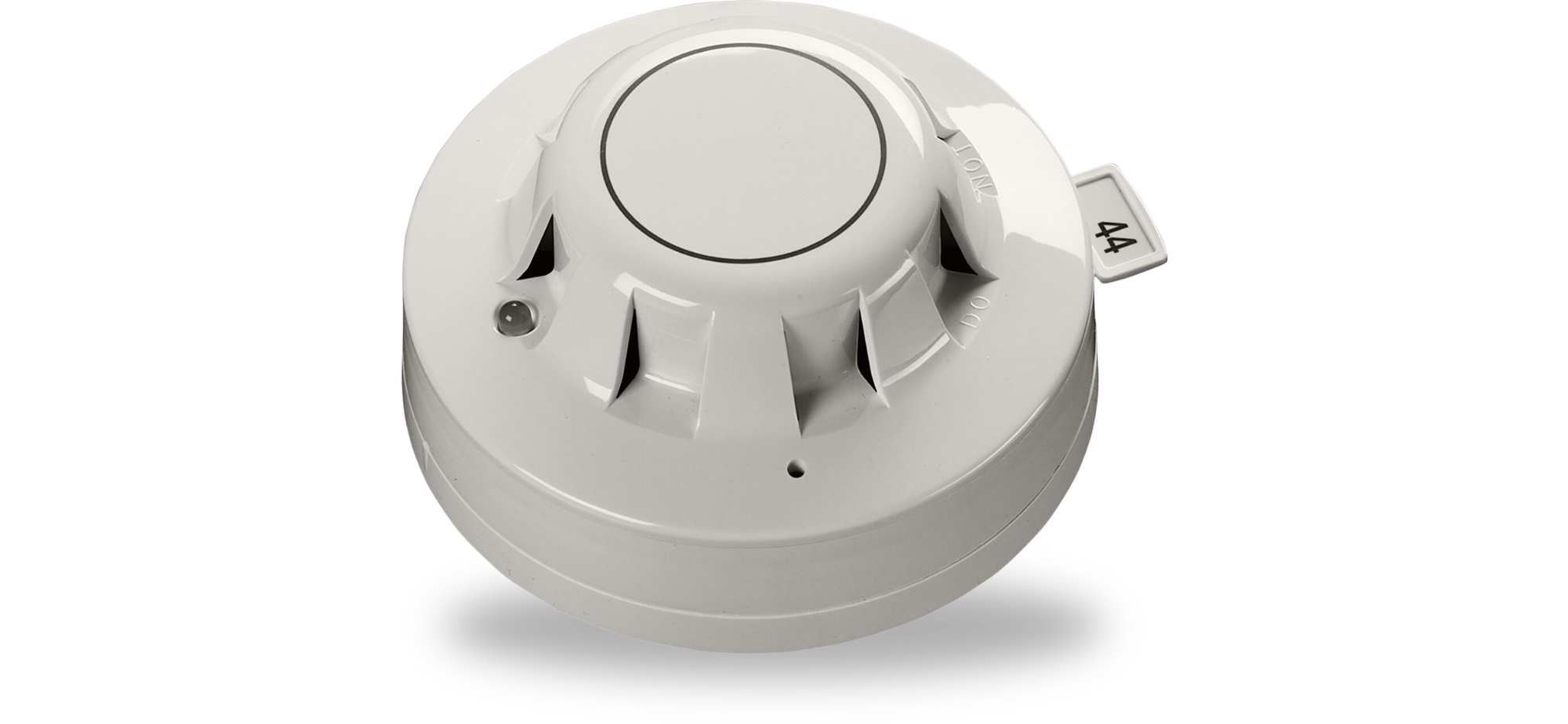

The XP95A Photoelectric Smoke Detector uses the light scatter principle to quickly and effectively detect a range of slow burning and smouldering fires.
| General |
|
| Applications |
Bedrooms, Escape routes, Restaurants, Hotels, Medium to large buildings, Offices, Retail
|
| Fire Type |
Slow burning, smouldering fires |
| Warranty |
10 year |
| Performance |
|
| Chamber type |
Chevron |
| Analogue value (- tolerance) |
7 |
| Analogue value (+ tolerance) |
7 |
| Analogue value |
25 +7/-7 |
| Alarm level analogue value |
55 |
| Chamber type |
Chevron |
| Electrical |
|
| Power-up surge current |
1mA |
| Maximum power-up time |
4 seconds |
| Status indicator - Alarm |
Red |
| Status indicator - Fault |
Off |
| Quiescent current |
340μA |
| Quiescent current tested at |
24V dc |
| Sampling frequency |
Once per second |
| Terminal functions +R |
+R Remote indicator positive connection |
| Terminal functions -R |
-R Remote indicator negative connection |
| Polarity |
L1 & L2 are polarity insensitive |
Environmental |
|
| Humidity (min) |
0% RH |
| Humidity (max) |
95% RH |
| Humidity Note |
no condensation or icing |
| Humidity |
0% to 95% (no condensation or icing) |
| Operating temperature (min) |
-20°C |
| Operating temperature (max) |
60°C |
| Operating temperature |
-20 to 60°C |
| IP rating Value |
IP23D |
| Storage temperature (min) |
-30°C |
| Storage temperature (max) |
80°C |
| Storage temperature |
-30 to 80°C |
| Conformance |
|
| Standards |
EN 54-7 |
| Approvals |
FM, SII, UL |
| Mechanical |
|
| Weight |
99g |
| Colour |
White |
| Finish |
Gloss |
| Materials housing |
Polycarbonate |
| Materials terminals |
Nickel plated stainless steel |
| Product length |
42mm |
| Product diameter |
100mm |
| Detection principle |
Photo-electric light scattering |
| Sensor configuration |
Horizontal optical bench housing infra-red emitter and sensor, arranged radially to detect forward scattered light |
