Product information

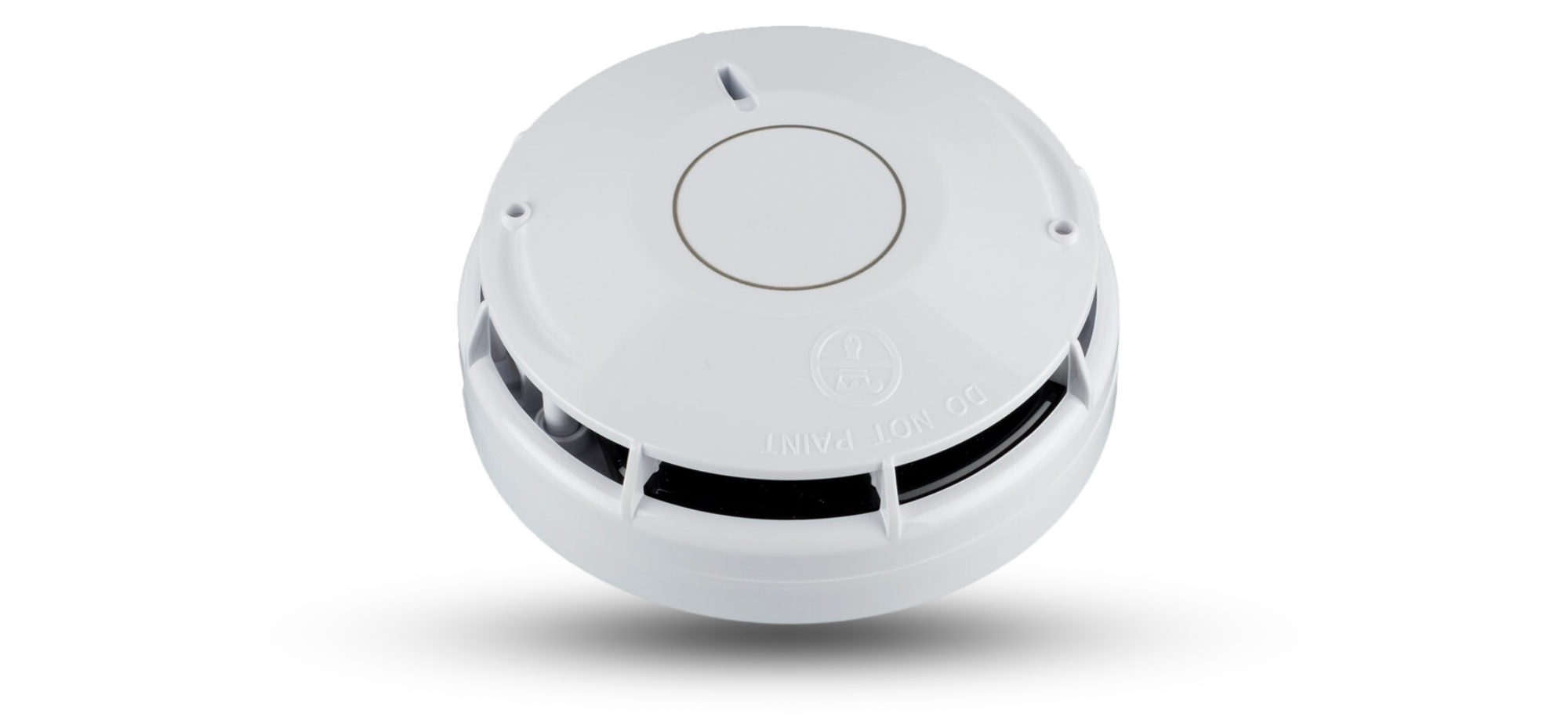

XP95A Smoke Detector - UL268 7th Ed

The XP95A Smoke Detector uses new sensing technology, Purelight®, to detect smoke particles entering the chamber. This reduces the possibility of false alarms whilst increasing the reliability of detection of a real fire.

  • Fully approved to the latest UL268 7th Edition and FM standards
  • Purelight® optical technology provides enhanced smoke detection and false alarm management
  • Backwards compatible with legacy XP95A systems
  • XP95 protocol compatible

Specification

Electrical
Protocol voltage (min) 5V
Protocol voltage (max) 9V
Protocol voltage 5 to 9V peak to peak
Quiescent current 250μA
Environmental
Humidity (min) 0% RH
Humidity (max) 95% RH
Humidity Note no condensation or icing
Humidity 0% to 95% (no condensation or icing)
Operating temperature (min) 0°C
Operating temperature (max) 55°C
Operating temperature 0 to 50°C
Conformance
Approvals FM, UL, ULC
Mechanical
Weight 83g
Colour White
Materials housing Polycarbonate
Product diameter 100mm
Product depth 36mm

Download

Certificate Datasheet
FM - Factory Mutual PP2696 XP95A Smoke Detector_Issue 1
UL - Underwriters' Laboratories Inc Soteria UL Detector Replacement Compatibility Guide
ULC - Underwriters Laboratories of Canada Inc.
