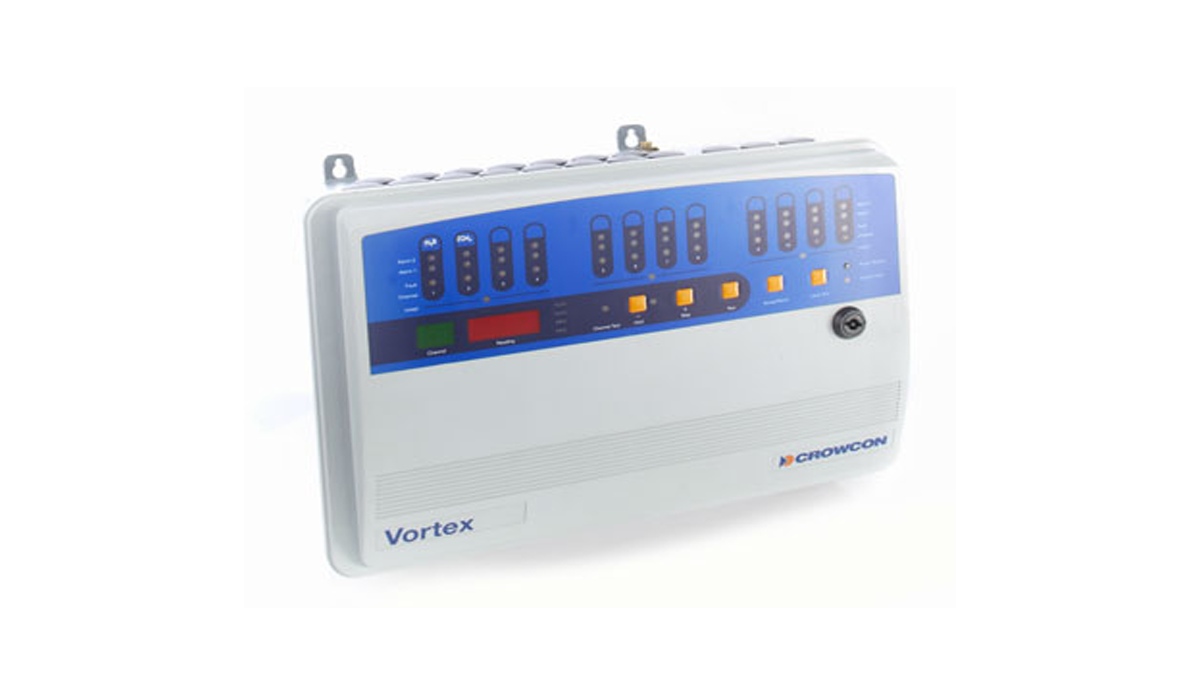

Vortex Gas Control System

Vortex is our most flexible control package that can be customised to meet your site requirements, however complex, without the need for extensive cabling.

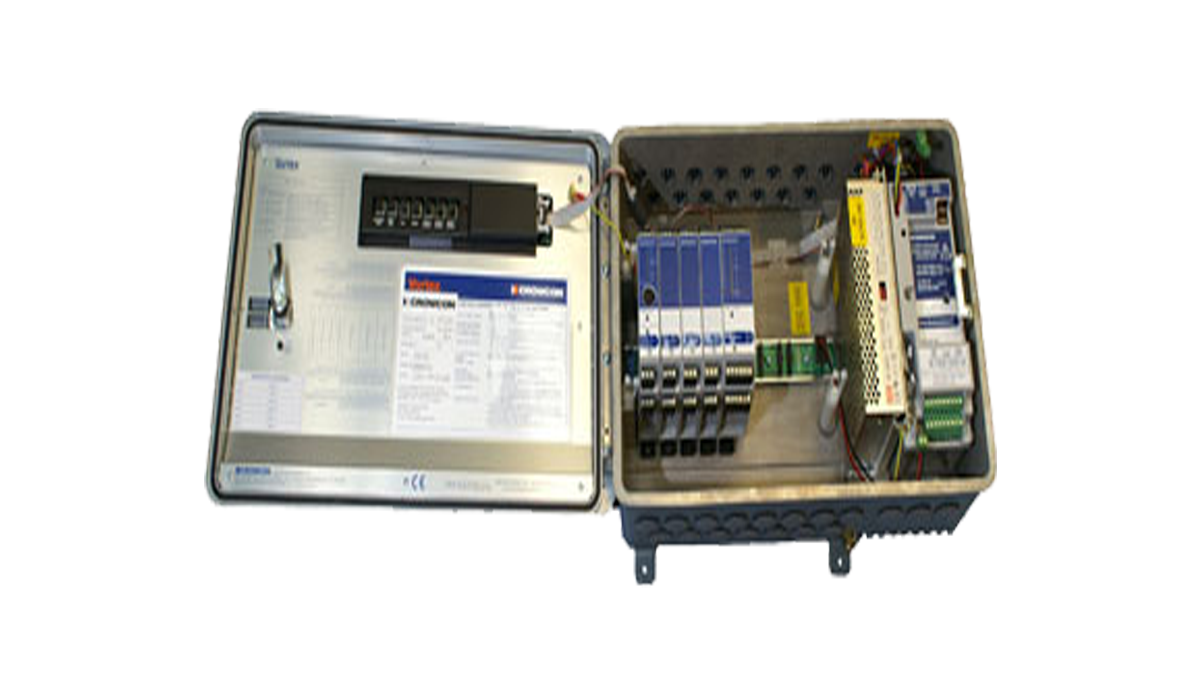

Vortex Rack & Panel comprise just the essential input, output and controller modules mounted on a DIN rail. An optional display module is available in panel-mounting and 19" Rack formats. This configuration is ideal for incorporation into a variety of specialist enclosures, such as 19" format or those with high ingress protection. Other standard features include RS-485 Modbus communications for remote non-intrusive calibration and configuration.

Channels and display

  • 1 to 12 channels (including 3 for fire) - up to 12 devices can be monitored by reviewing just one control panel, saving time and manpower
  • Each channel has 1 fault level and 3 alarm levels which can be combined in any pattern to trigger up to 32 output relays - flexibility built in, initially configured to suit your operational needs, then channels/alarms are easily customised by you if requirements change
  • Can be factory set to your requirements. Then when in situ, can easily be configured to suit your needs using Vortex PC software
  • Push buttons on front display - day-to-day operations are easily undertaken

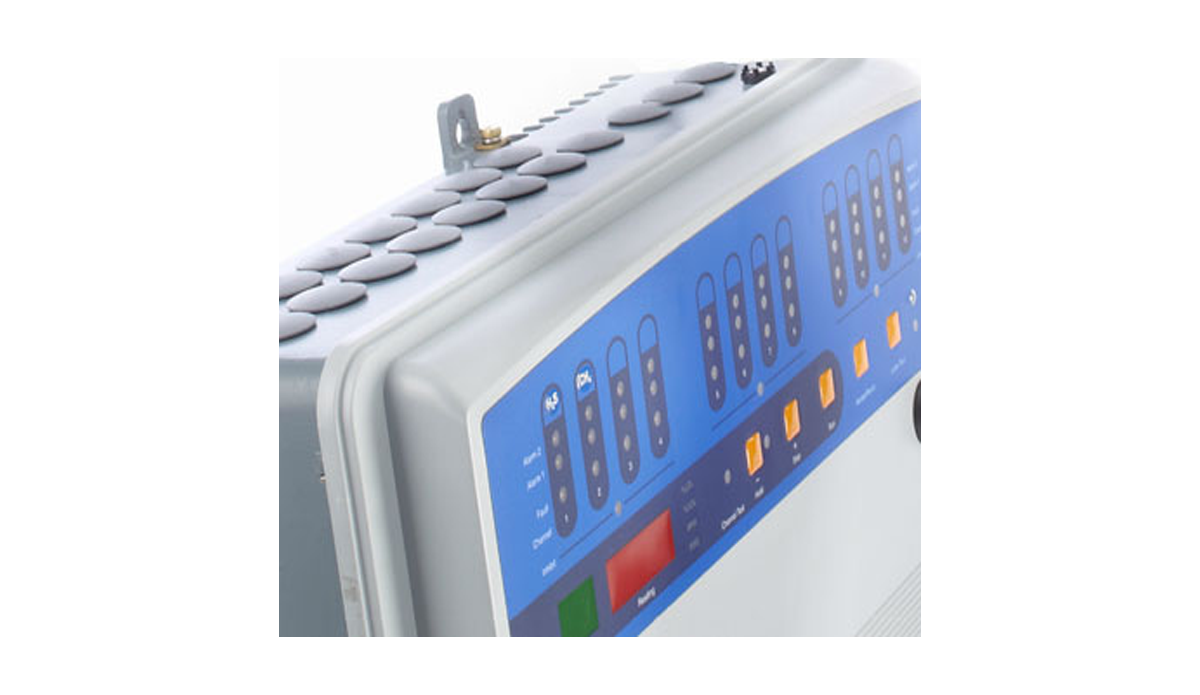

  • LED display panel lights - faults are easily seen and whole system can be checked at a glance

Installation and maintenance

  • Modbus compatability - no extensive cabling required; cable connections within the unit are easy
  • Space within units for access to cable terminals
  • Uses industry standard communication links - simple to integrate into existing control systems
  • Any adjustments are performed electronically - minimal maintenance and no drift from adjustable potentiometers
  • Separate zones can be individually inhibited - you can work on specific areas without affecting the rest of the system
  • Modular construction - replacement parts if required, which plug straight in

Compliance and reliability

  • Validated to IEC 61508 (SIL 1) - demonstrates system dependability
  • System monitors relays continuously - coil faults are identified immediately without input from you
  • Internal battery pack* - power outs are not a problem. Internal battery pack continuously monitored for change levels and connection. System is operational at all times

Specification

Size Vortex
470 x 306 x 170mm (18.5 x 12 x 6.5 ins)
Vortex Rack/Panel

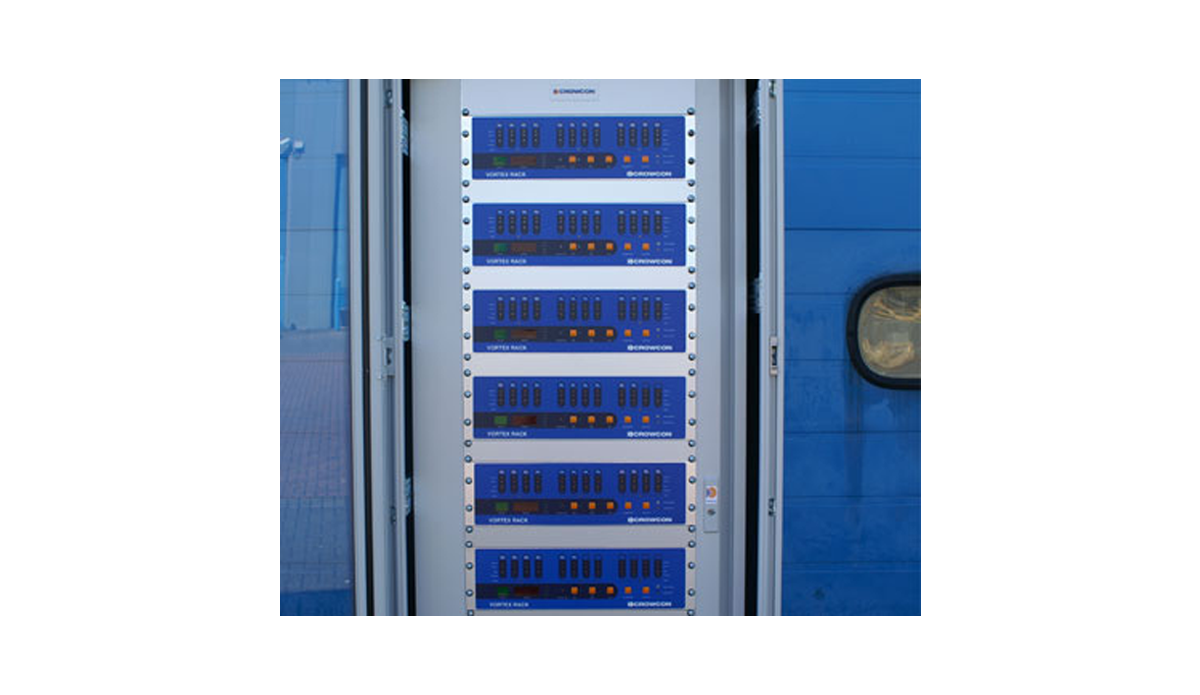

Rack display: standard 19” 3U
Panel display: 441 x 128mm (cut-out 366 x 84.5mm)
Modules, PSU and batteries are supplied separately for fitting within a cabinet.
Weight Vortex
12Kg (27lbs)
Vortex Rack/Panel
Dependant on configuration
Alarm Vortex & Vortex Rack/Panel
Audible - internal sounder: Piezo
Visual - Alarm: Level 1 & 2, Red LED; Fault - Per channel, Amber LED; Inhibit - Per zone, Amber LED
Environment Ingress Protection
Vortex
IP65
Vortex Rack/Panel
Cabinet dependent
Operating temperature
Vortex & Vortex Rack/Panel
-10°C to +40°C (14°F to +140°F)
Operating temperature
Vortex & Vortex Rack/Panel
0-95% RH non-condensing
Approvals Vortex & Vortex Rack/Panel
Low voltage directive: EN61010-1
EMC: EN50270, FCC, ICES
Enclosure material Vortex
Back-box: Aluminium
Front cover: ABS
Vortex Rack/Panel
Not applicable
Power Vortex & Vortex Rack/Panel
AC mains: 110/120V & 220/240Vac (switchable) 50-60hz 3.2A max
DC: 20-30Vdc
Battery back-ip: 2Ah internal
Relays (optional) Type
Vortex
Up to 24 SPCO, contacts rated 6A @ 250Vac (1 to 3 8-way relay modules)
Vortex Rack/Panel
Up to 32 SPCO with bus extension module
Assignment - CommonVortex & Vortex Rack/Panel
Mains fail, battery low and fail
Assignment - Voting
Vortex & Vortex Rack/Panel
Alarms, faults and system events
Relay modes
Vortex & Vortex Rack/Panel
Energised/de-energised, latched/non-latched, time-delayed, pulsed
Event logging Vortex & Vortex Rack/Panel
Up to 300 alarm, power, fault, system events are stored in Non-Volatile Memory
Panel indication Vortex & Vortex Rack/Panel
Channel number: 2-digit 7-segment Green LED
Gas reading: 4-digit 7-segment Red LED
Measurement units: % LEL, ppm, % Vol, Fire
Power: Green LED
Battery OK: Green LED
Run/hold indication: Green LED
Channel test mode: Flashing Amber LED
System fault - integrity watchdog: Amber LED
Functional safety Vortex & Vortex Rack/Panel
Validated to IEC61508 (SIL1)
Inputs Gas
Vortex & Vortex Rack/Panel
Up to 12 (1 to 3 4-way input modules)
Fire - smoke & heat detectors, manual call-points
Vortex & Vortex Rack/Panel
Up to 3 loops, Up to 20 devices per loop
Outputs External audible/visual alarm drive
Vortex & Vortex Rack/Panel
Via relays, four 24Vdc 0.5A supplies provided
Digital communications Vortex & Vortex Rack/Panel
Up to 12 (1 to 3 4-way input modules)
Channels Vortex & Vortex Rack/Panel
DCS/PLC/PC: RS-485 Modbus or Profibus
Local configuration link: RS-232 (configuration software and lead supplied)
