Product information

  • Product: Crowcon
  • Category: Portable Gas Detectors
  • Product URL: T4 Portable

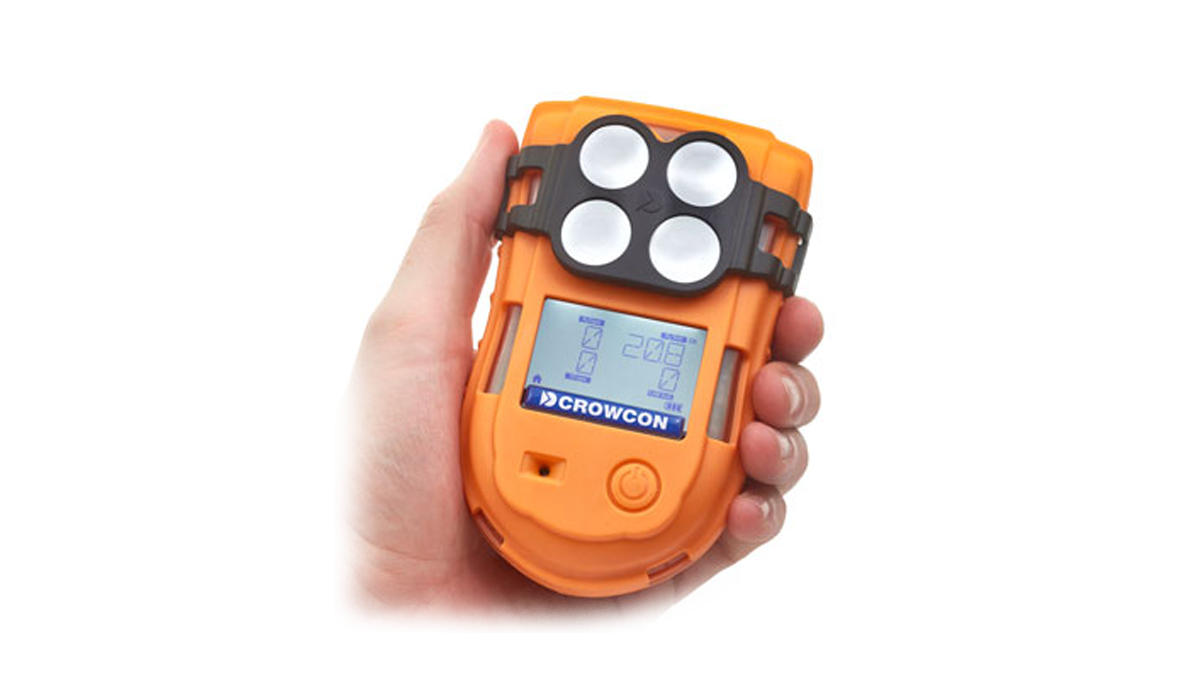

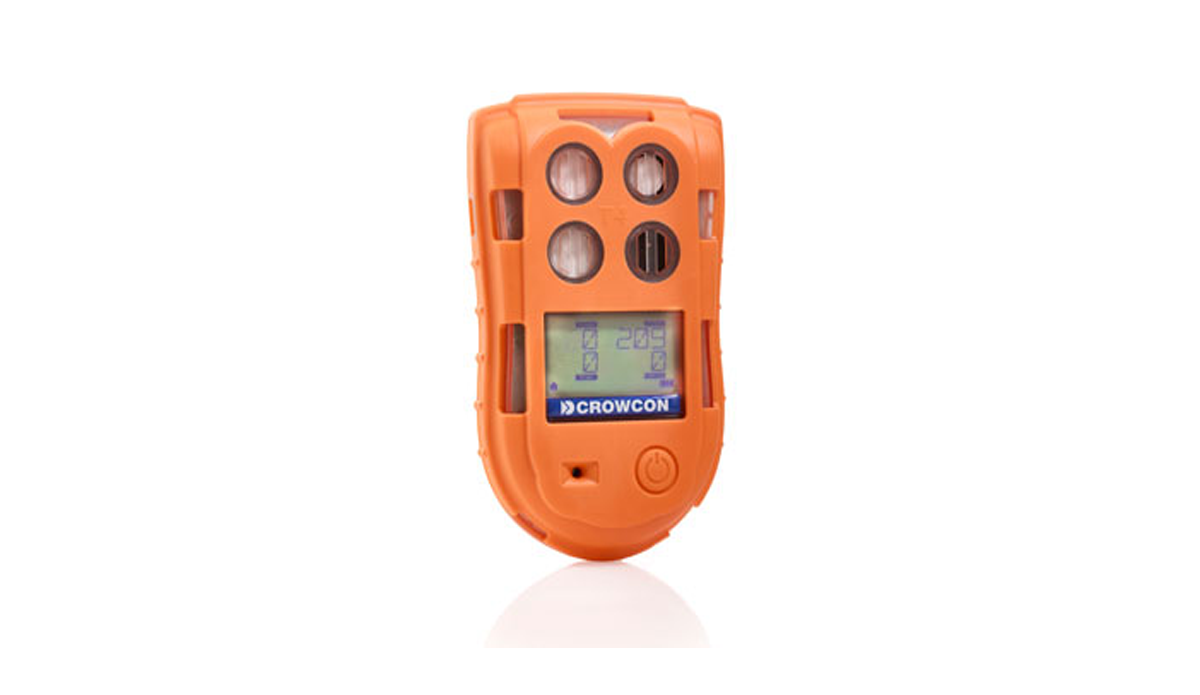

T4

Portable 4 gas detector provides effective protection against 4 common gas hazards: carbon monoxide, hydrogen sulphide, flammable gases and oxygen depletion. Now with improved detection of pentane, hexane and other long chain hydrocarbons.
Offering you compliance, robustness and low cost of ownership in a simple to use solution. T4 contains a wide range of powerful features to make everyday use easier and safer.

T4 is Crowcon's personal protection solution for detecting the four most common gas hazards:

  • carbon monoxide
  • hydrogen sulphide
  • flammable gases
  • oxygen depletion

Offering you compliance, robustness and low cost of ownership in a simple to use solution. The large single button and intuitive menu system allows T4 to be operated wearing gloves with minimal training.

Crowcon's toughest portable yet, T4 is durable by design and includes an integrated rubber boot as standard. An optional clip-on filter cover, which is easily removed and replaced, ensures sensors are protected in the dirtiest environments. Drop tested to 4m and well protected from water ingress through IP65 and IP67 certification, T4 allows uninterrupted working in the most demanding environments.

Now with improved detection of pentane, hexane and other long chain hydrocarbons.

T4 contains a wide range of powerful features to make everyday use easier and safer:

TWA Resume

Unique to T4, the TWA Resume function ensures toxic gas exposure is calculated accurately over an entire shift, even if T4 is switched off for a break or during travel to another site.

When most portable detectors are turned off, the algorithm that assesses TWA exposure assumes that it’s the end of the shift. When turned on again, these detectors act as if it is a new work shift, ignoring all previous measurements. The TWA Resume function however, provides the option to include previous measurements from within the correct time frame.

18 hour battery

With a battery life of 18 hours, T4 allows multiple or longer shifts to be worked between recharging.

Positive Safety

Crowcon's visual 'traffic light' indication, provides constant visual assurance that T4 is operating soundly and conforms to site bump test & calibration policy. The bright green and red Positive Safety LEDs are visible to all and offer a quick, simple and comprehensive indication of monitor status to both the user and others around them.

Accessories

T4 is complemented by a range of accessories including:

  • Multiple charging options
  • Portables Pro 2.0 software for accessing advanced T4 features and data logs
  • Clip on dust filter plates for extra sensor protection in dirtier environments
  • I-Test which makes easy work of calibrating, bump testing and managing larger fleets of T4s.

Specification

Size W135 x H80 x D35 mm (5.3 x 3.1 x 1.4in)
Weight 282g (9.9oz)
Alarm Audible >95dB
Bright red/blue visual LEDs
Integrated vibrating alert
Display Front mounted, backlit. Optional 180° flip for easy viewing whilst worn
Logging 130 hours of data logging; Up to 3500 events
Battery Rechargeable Li-ion
18 hour typical runtime
5.5 hour recharge
Environment Temperature: -20°C to +55°C (-4°F to +131°F)
Humidity: 10 to 95% RH @ 40°C non-condensing
Ingress Protection: Independently tested to IP65 and IP67
Compliance EMC Directive 2014/30/EU
Compliance EMC 2014/30/EU
ATEX 2014/34/EU
Approvals IECEx: Ex d ia IIC T4 Gb Tamb -20°C to +55°C ATEX: Ex II 2 G Ex d ia IIC T4 Gb Tamb -20°C to +55°C
UL: Use in hazardous locations Class 1 Div 1, groups A, B, C and D only as to intrinsic safety
INMETRO: Ex d ia IIC T4 Gb Tamb -20°C to +55°C
Interface USB communications lead
Durability Drop tested to 4m onto concrete
Accessories Available separately:

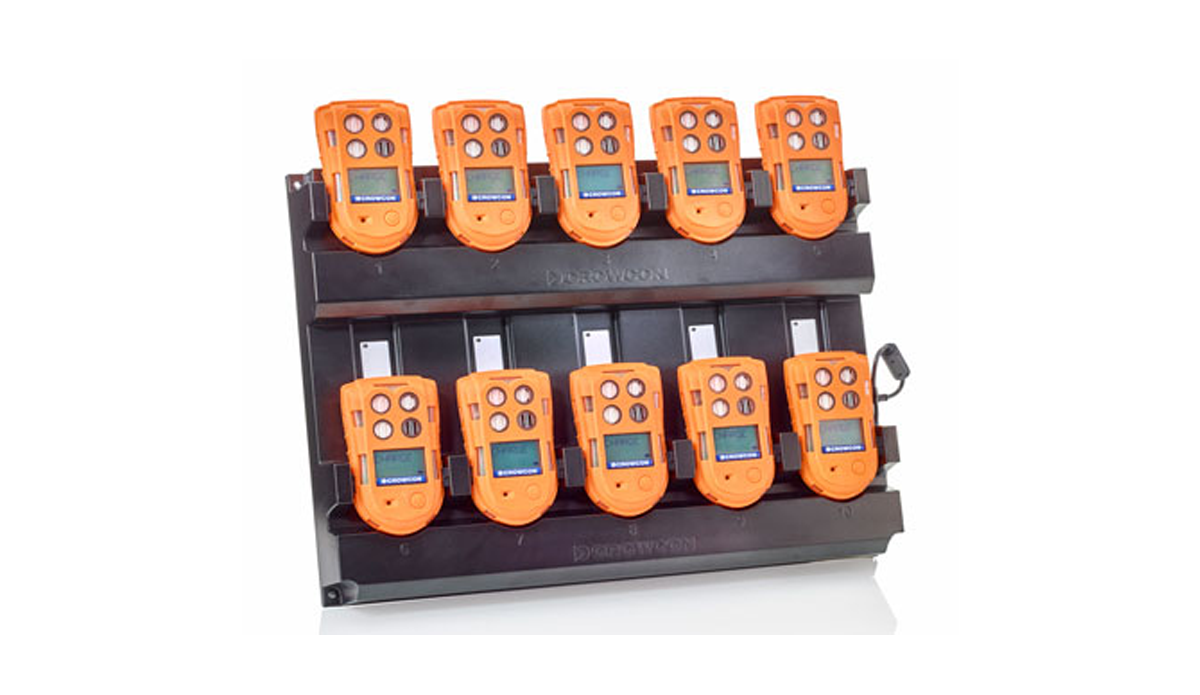

Single unit cradle charger, 10 unit cradle charger, vehicle charger Clip on filter plate for sensor protection in dusty environements I-Test automated bump and calibration station

Download

Certificate Datasheet Manual
MED certificate T4 – European English T4 Quick Start Guide – INMETRO (Issue 1 – July 2020)
MED certificate 2 GT4 – US English (Letter Size) T4 Manual (Issue 5 – June 2018) – English
ATEX Gas-Pro Certificate Portables Pro 2 User Manual (Issue 2 – Oct 2015)
ATEX Certificate
INMETRO Certificate
IECEx Certificate
IEXEx Charging & Accessories Certificate
ATEX Charging & Accessories Certificate
