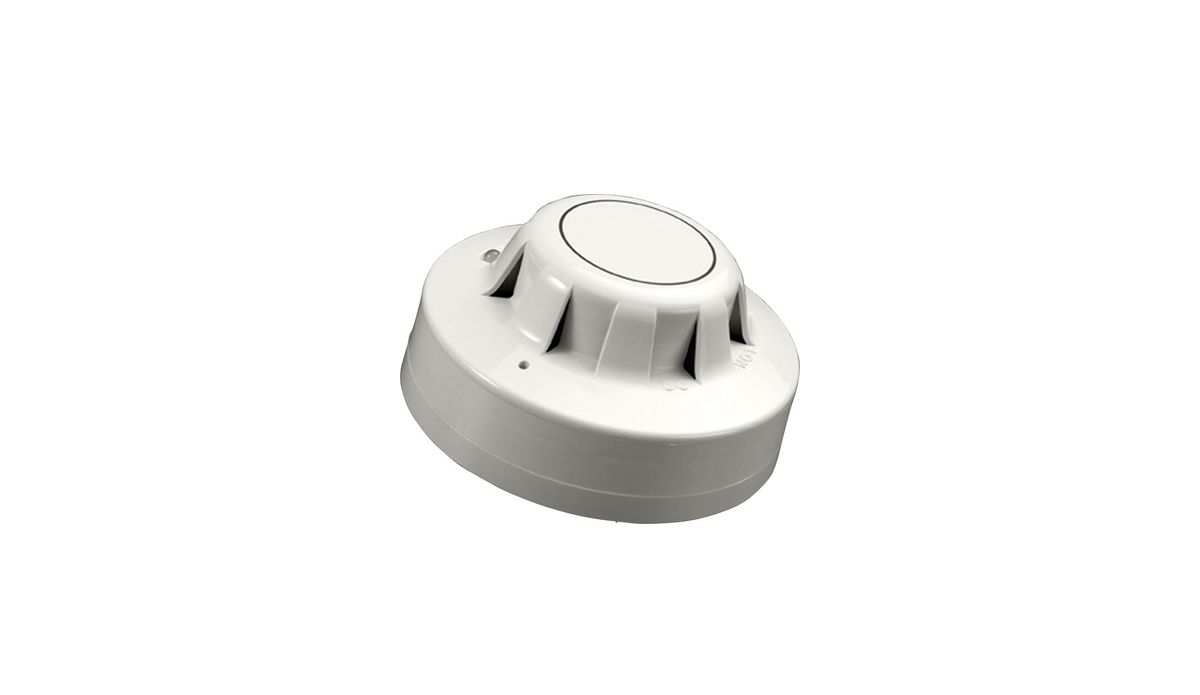

The Series 65 Optical Smoke Detector uses light sensing technology to detect a fire. The external detector moulding has an indicator LED which is white in quiescent state but produces a red light in alarm.
Series 65 incorporates well-proven sensing technologies, including an Integrated Circuit based on that used in XP95 analogue addressable detectors.
The Series 65 range has a wide operating voltage of 9–33V and consists of ionisation, integrating ionisation and optical smoke detectors, four grades of heat detector and a range of bases.
| General | |
| Applications | B&Bs/guest houses, Bedrooms, Cafes, Restaurants, Retail, Small to medium buildings, Care homes, HMOs, Hospitals, Hotels, Industrial premises, Large vessels, Listed buildings, Medium to large buildings, Offices, University campuses, Warehouses |
| Fire Type | Slow burning, smouldering fires |
| Warranty | 10 year |
| Performance | |
| Chamber type | Chevron |
| Electrical | |
| Power-up surge current | 0.115mA |
| Maximum power-up time | 30 seconds |
| Status indicator - Alarm | Red |
| Status indicator - Fault | Off |
| Quiescent current | 50μA |
| Quiescent current tested at | 24V dc |
| Sampling frequency | Once every 3 seconds |
| Sampling frequency | -L2 Line in & out negative |
| Terminal functions L1 in | +L1 in |
| Terminal functions L1 out | +L1 out |
| Terminal functions -R | -R Remote indicator negative connection |
| Polarity | L1 & L2 are polarity insensitive |
| Holding voltage (min) | 6V |
| Minimum voltage to light alarm LED | 12V |
| Alarm reset time | 1s |
| Alarm load | 420Ω in series with 2V drop |
| Battery powered | No |
| Environmental | |
| Humidity (min) | 0% RH |
| Humidity (max) | 95% RH |
| Humidity Note | no condensation or icing |
| Humidity | 0% to 95% (no condensation or icing) |
| Operating temperature (min) | -20°C |
| Operating temperature (max) | 60°C |
| Operating temperature | -20 to 60°C |
| IP rating Value | IP23D |
| Storage temperature (min) | -30°C |
| Storage temperature (max) | 80°C |
| Storage temperature | -30 to 80°C |
| Conformance | |
| Standards | EN 54-7 |
| Approvals | CPR, FG, SBSC, VdS, BOSEC, LPCB |
| Mechanical | |
| Weight | 99g |
| Colour | White |
| Finish | Gloss |
| Materials housing | Polycarbonate |
| Materials terminals | Nickel plated stainless steel |
| Product length | 42mm |
| Product diameter | 100mm |
| Detection principle | Photo-electric light scattering |
| Sensor configuration | Horizontal optical bench housing infra-red emitter and sensor, arranged radially to detect forward scattered light |
