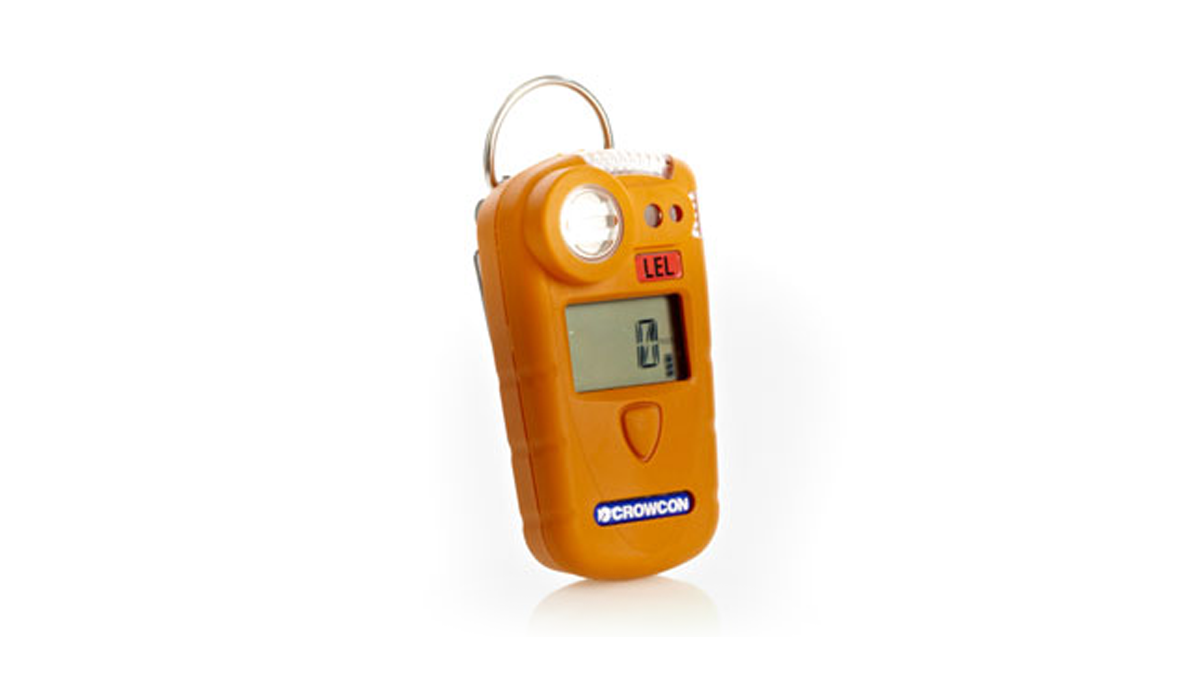

The Gasman full function personal single gas monitor is compact and lightweight yet is fully ruggedised for the toughest of industrial environments. Featuring simple single button operation, it has a large easy-to-read display of gas concentration, and audible, visual and vibrating alarms.
Gasman is a range of rugged, compact single gas personal monitors designed for use in the toughest environments. Its stunningly compact and lightweight design makes it ideal for use in industries such as oil and gas, chemical plants (with exotic gases), steel works (special CO sensor), hospitality (CO2) and waste and water works.
Weighing just 130g, it is extremely durable, with high impact resistance and dust/water ingress protection, loud 95 dB alarms, a vivid red/ blue visual warning, single-button control and an easy-to-read, backlit LCD display to ensure clear viewing of gas level readings, alarm conditions and battery life. Data and event logging are available as standard, and there is a built-in 30 day advance warning when calibration is due.
Gasman is also available in a safe area CO2 version offering 0-5% carbon dioxide measurement.
| Size | 90 x 48 x 24 mm (3.5 x 1.9 x 0.95 ins) |
| Weight | Flammable: 138g (4.9oz) Toxic: 118g (4.1oz) Oxygen: 129g (4.6oz) Carbon monoxide: 139g (4.9oz) |
| Alarm | Audible: 95dB; Multiple alarm options let you select distinctive tones for different alarm levels Visible: Dual colours red/ blue flashing LEDs in a gas hazard Internal vibrating alarm |
| Display | Custom LCD with backlight, with display of gas concentration. Graphic symbols for battery (with proportional indication of remaining operation time), and display mode. Start up indication when calibration is due within 30 days, calibration overdue or service required. Normal display: Real time gas concentration levels Display recall: Peak readings and TWA |
| Logging | Data Logging: Full timed datalogging with adjustable sample rate, set to 1 min. data rate as default. 900 hours storage at 1 min. interval (54,000 logs), >4800 events |
| Battery | Rechargeable lithium battery for all gas types Non-rechargeable lithium battery for toxics and oxygen (excluding CO2) |
| Sampling | Optional manual aspirator |
| Environment | Temperature: -20°C to +65°C (-4°F to +149°F) Humidity: 20 to 90% RH Ingress Protection: IP65 |

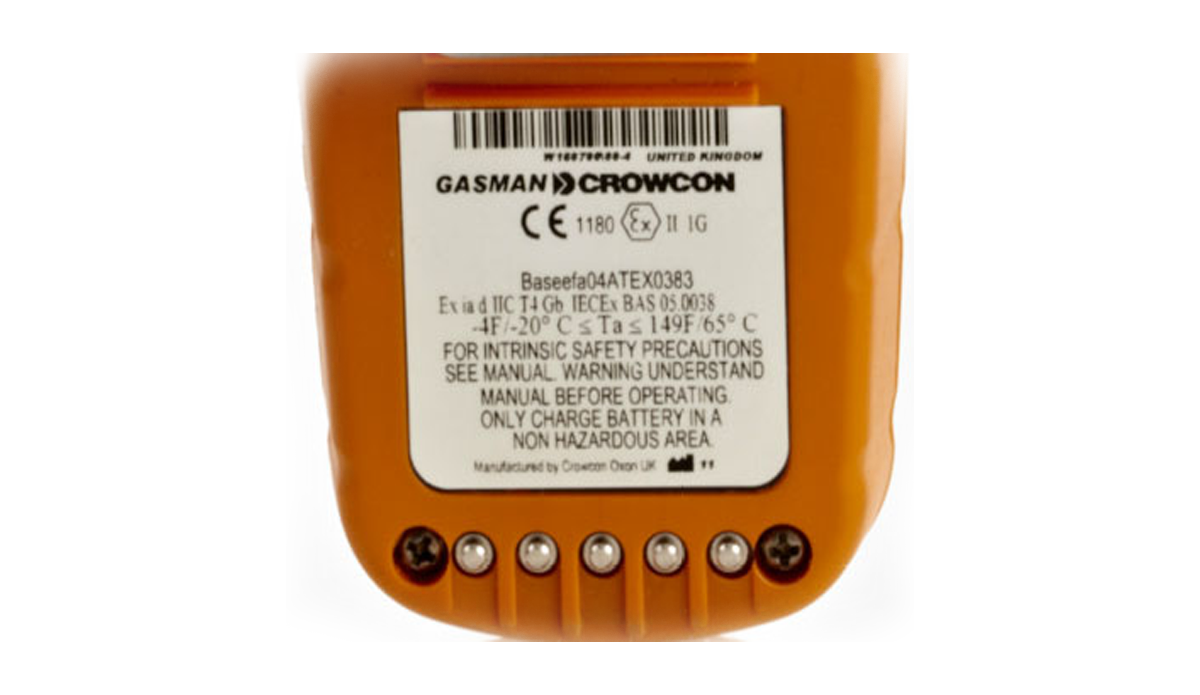

| Approvals | Europe: Toxic or O2: ATEX II 1G Ex ia IIC T4 Ga (-20°C ≤ Ta ≤ +65°C) BASEEFA04ATEX0384 Flammable: ATEX II 2G Ex ia d IIC T4 Gb (-20°C ≤ Ta ≤ +65°C) BASEEFA04ATEX0383 International: Toxic or O2: IECEx BAS05.0039 Flammable: IECEx BAS05.0038 North America: CSA Class 1 Groups A,B,C,D Division 1 |
| Typical response times (T90) | Flammable: 20s Toxic gas: 20s Oxygen: 10s |
| Operating time | Rechargeable: 12 hours minimum for flammable unit Non-rechargeable: Up to 2 years |
| Standards | Europe: EN60079-0, EN60079-11, EN60079-1 North America: CSA22.2, 152EN50270, EN50271, IEC61508, EN61779, EN45544 |
| PC Interface | RS232 connection from interface module in charger RS232/USB converter available |
| Calibration | Gasman can be routinely calibrated using Portables PC software or by using Checkbox IMH |
