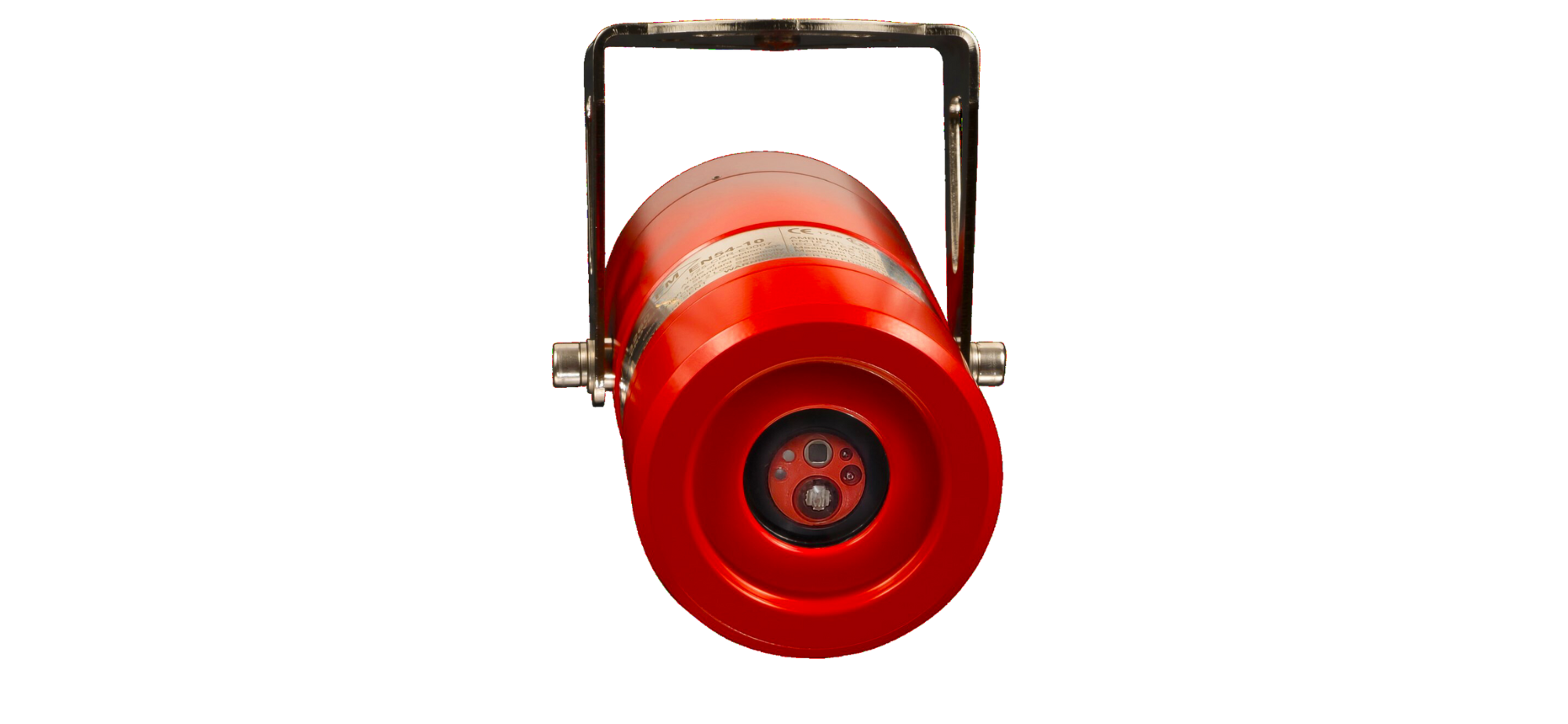

FGard UVIR Flame Detector


Overview

The Crowcon FGard UVIR flame detector is an explosion proof ultraviolet-infrared flame detector, offering superior detection of hydrocarbon fires which are not detectable in the visible spectrum.

False Alarm Immunity

Fgard UVIR utilises the latest IR flame detection algorithms to ensure maximum false alarm immunity.

Adjustable Sensitivity Levels

The user can choose from three different sensitivity settings, enabling selection of the most appropriate level for their specific application.

Heated optics

Microprocessor controlled heated optics ensure continuous operation even in harsh weather conditions such as snow, ice, and condensation.

Advanced optical verification – No reflector

Automatic test verifies cleanliness of the lens and electronic circuitry. No reflector optical check and large optical surface results in far fewer false alarms.

Specification

Operating temp -60°C to +85°C (-76°F to +185°F)
Storage temp -76°F to +185°F (-60°C to +85°C)
Humidity 0-100 % RH (Non-condensing)
Operating voltage 24 Vdc Nominal – (Range 18 to 32 Vdc)
Power consumption 3W minimum (without heater), 15 W at 32 Vdc with heater on maximum
Speed of response < 5 seconds (Typical)
Dimensions 100 mm Dia x 200 mm (4” Dia x 8” L)
Material Copper free aluminum or 316 stainless steel
Entry size 3/4 inch NPT or M25
Weight Alu 5.5 lbs (2.5 Kg) / SS 13.2 lbs (6.0kg)
Outputs Relay contacts (DPDT 2A at 30Vdc) – alarm and fault.
0-20mA plus fault alerts, HART®
Certifications Class 1 Div 1 Groups B, C, D T4 Ambient –50°C to +85°C
Class 1 Zone 1 AEx/Ex db IIC T4 Ambient –50°C to +85°C
ATEX II 2 G Ex db IIC T4
IECEx Ex db IIC T4 Ambient –60°C to +85°C
INMETRO Ex db IIC T4 – pending
PESO Ex db IIC T4 Ta= -60°C to +85°C – pending
Performance approvals FM 3260
EN 54-10
Ingress – IP66 /NEMA 4X
SIL2 – IEC 61508
