Product information

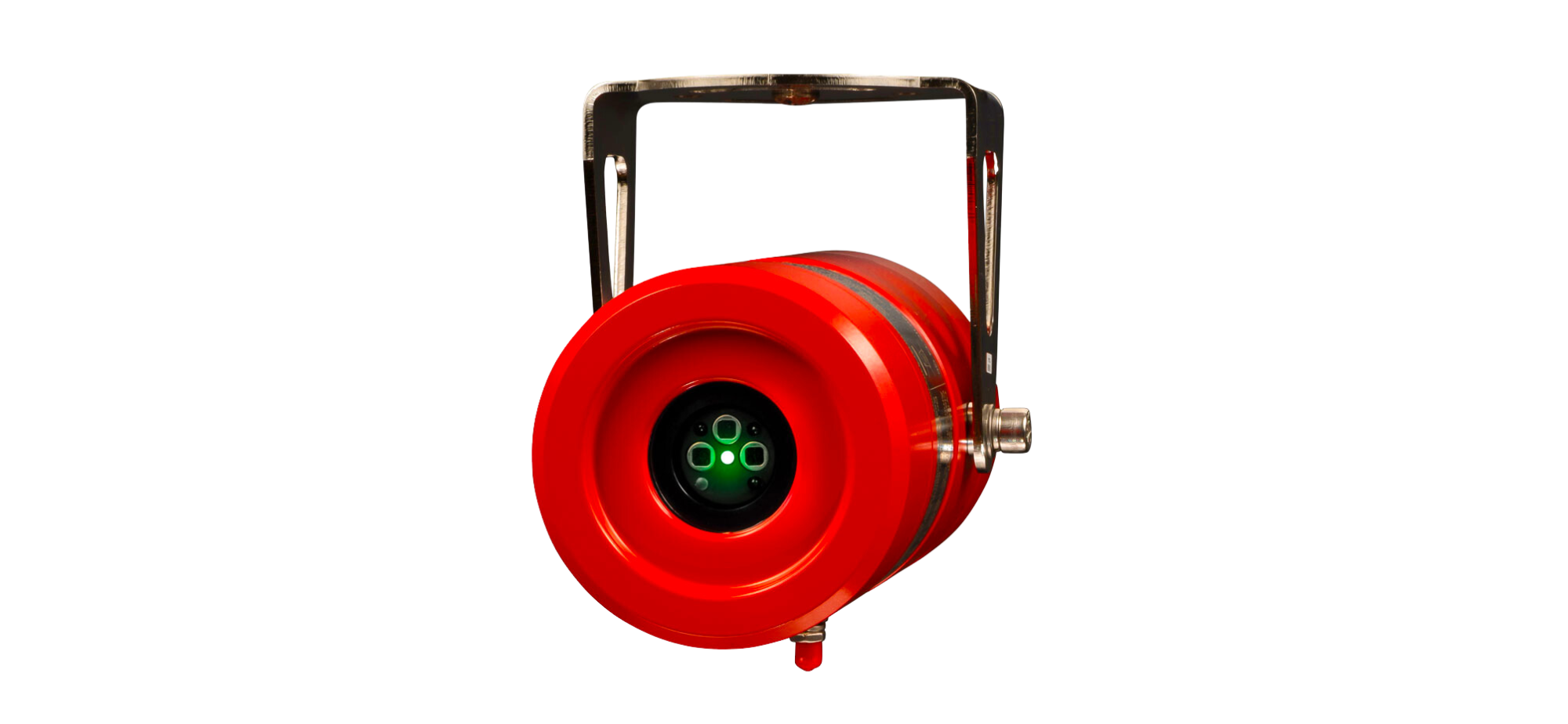

FGard IR3 Flame Detector

The Crowcon FGard IR3 flame detector is an explosion proof multi spectrum IR flame detector. FGard delivers superior performance, responding to hydrocarbon liquid fuel and gas fires at long distances.


The FGard IR3 delivers first-in-class flame detection with intelligent heated optics for clearer results and advanced optical verification to greatly reduce false alarms


Overview

The FGard IR3 delivers superior performance in the detection of hydrocarbon fires. The FGard IR3 utilises the latest IR flame detection algorithms to ensure maximum false alarm immunity. The FGard IR3 has been independently tested to demonstrate it can detect a hydrocarbon fuel pan fire at nearly 200 feet in less than 5 seconds.

Multi spectrum IR

60 metre flame detection range – Will detect all Hydrocarbon fires which means no condensation forming on the window, improving reliability and performance across temperature.

Fast detection time

Responds in less than 5 seconds to 0.1m² fire at 60 metres.

Specification

Operating temp -60°C to +85°C (-76°F to +185°F)
Storage temp -76°F to +185°F (-60°C to +85°C)
Humidity 0-100 % RH (Non-condensing)
Operating voltage 24 Vdc Nominal – (Range 18 to 32 Vdc)
Power consumption 3W minimum (without heater), 15 W at 32 Vdc with heater on maximum
Speed of response < 5 seconds (Typical)
Dimensions 100 mm Dia x 200 mm (4” Dia x 8” L)
Material Copper free aluminum or 316 stainless steel
Entry size 3/4 inch NPT or M25
Weight Alu 5.5 lbs (2.5 Kg) / SS 13.2 lbs (6.0kg)
Outputs Relay contacts (DPDT 2A at 30Vdc) – alarm and fault.
0-20mA plus fault alerts, HART®
Certifications Class 1 Div 1 Groups B, C, D T4 Ambient –50°C to +85°C
Class 1 Zone 1 AEx/Ex db IIC T4 Ambient –50°C to +85°C
ATEX II 2 G Ex db IIC T4
IECEx Ex db IIC T4 Ambient –60°C to +85°C
INMETRO Ex db IIC T4
PESO Ex db IIC T4 Ta= -60°C to +85°C
CCC (China Fire Approvals) – Pending
GB-Ex of China – Pending
Performance approvals FM 3260
EN 54-10
Ingress – IP66 /NEMA 4X
SIL2 – IEC 61508

Download

Certificate Datasheet Manual
ATEX Certificate (Fgard IR3 Detector)
ATEX Certificate (Fgard Flame Simulator)
Class 1 Div 1 Groups B, C, D T4 Ambient –50°C to +85°C
Class 1 Zone 1 AEx/Ex db IIC T4 Ambient –50°C to +85°C
IECEx Certificate (Fgard IR3)
INMETRO Ex db IIC T4
PESO Certificate (Fgard IR3)
Fgard – European English TFlame detector IR3 (FGard IR3) – FD-AC-07 Manual

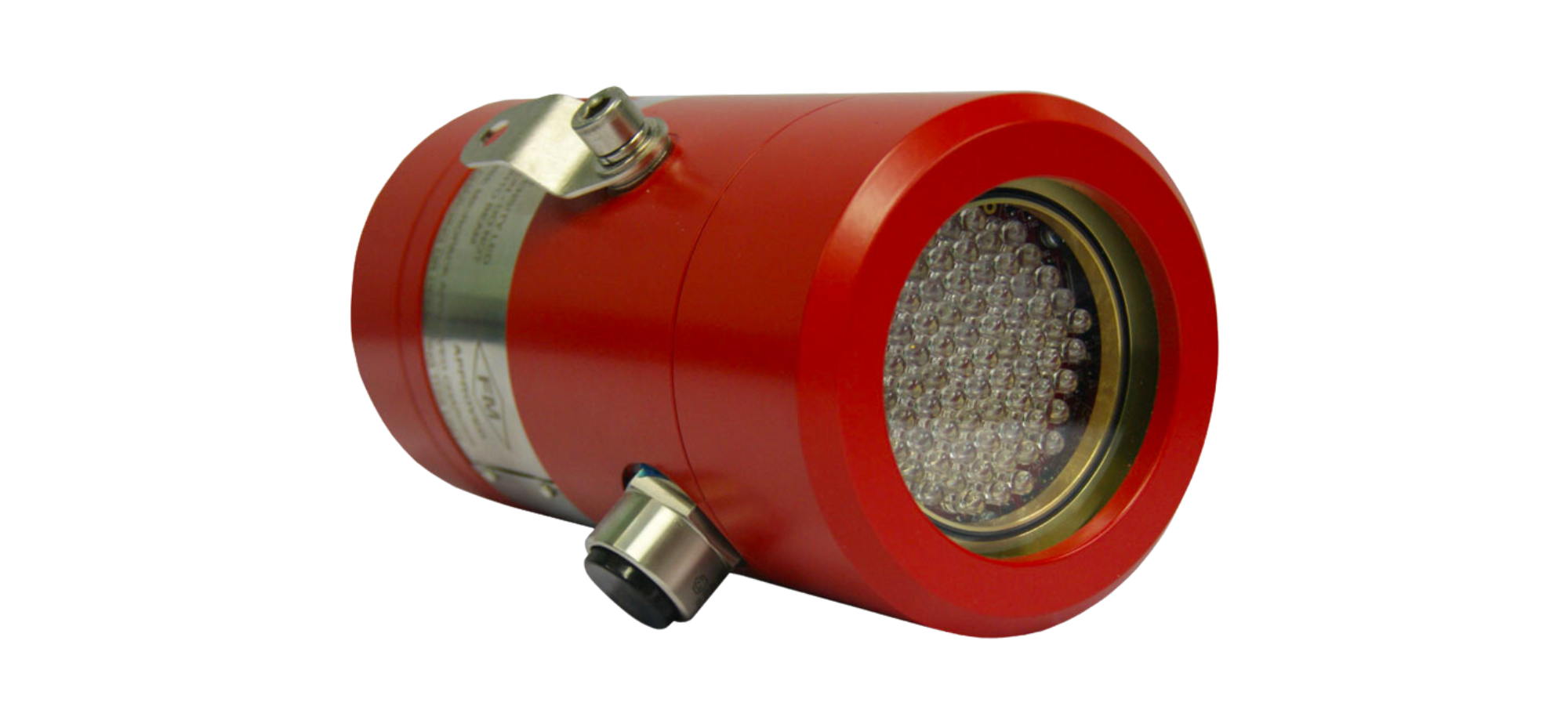

Flame simulator (FGard SIM) – FD-AC-08 Manual
