Product information

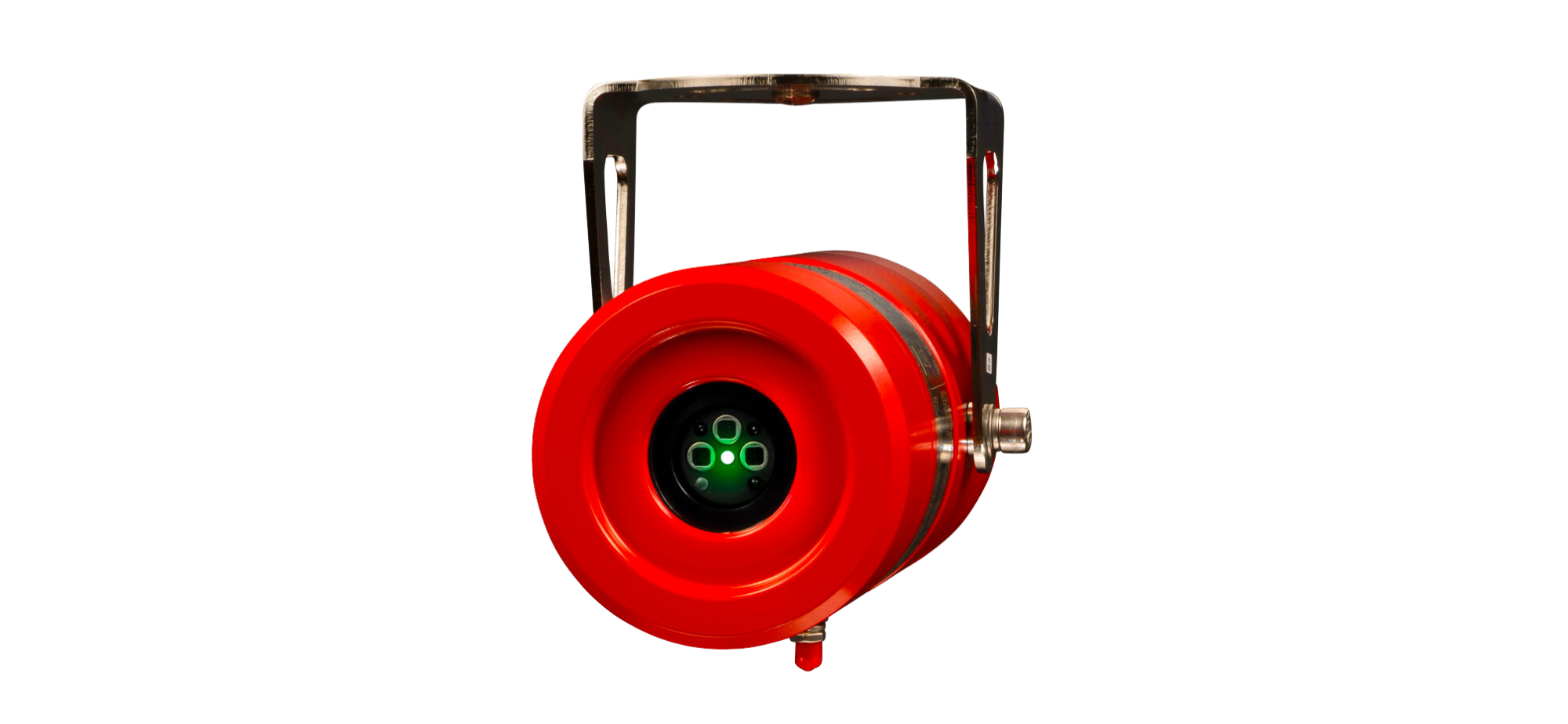

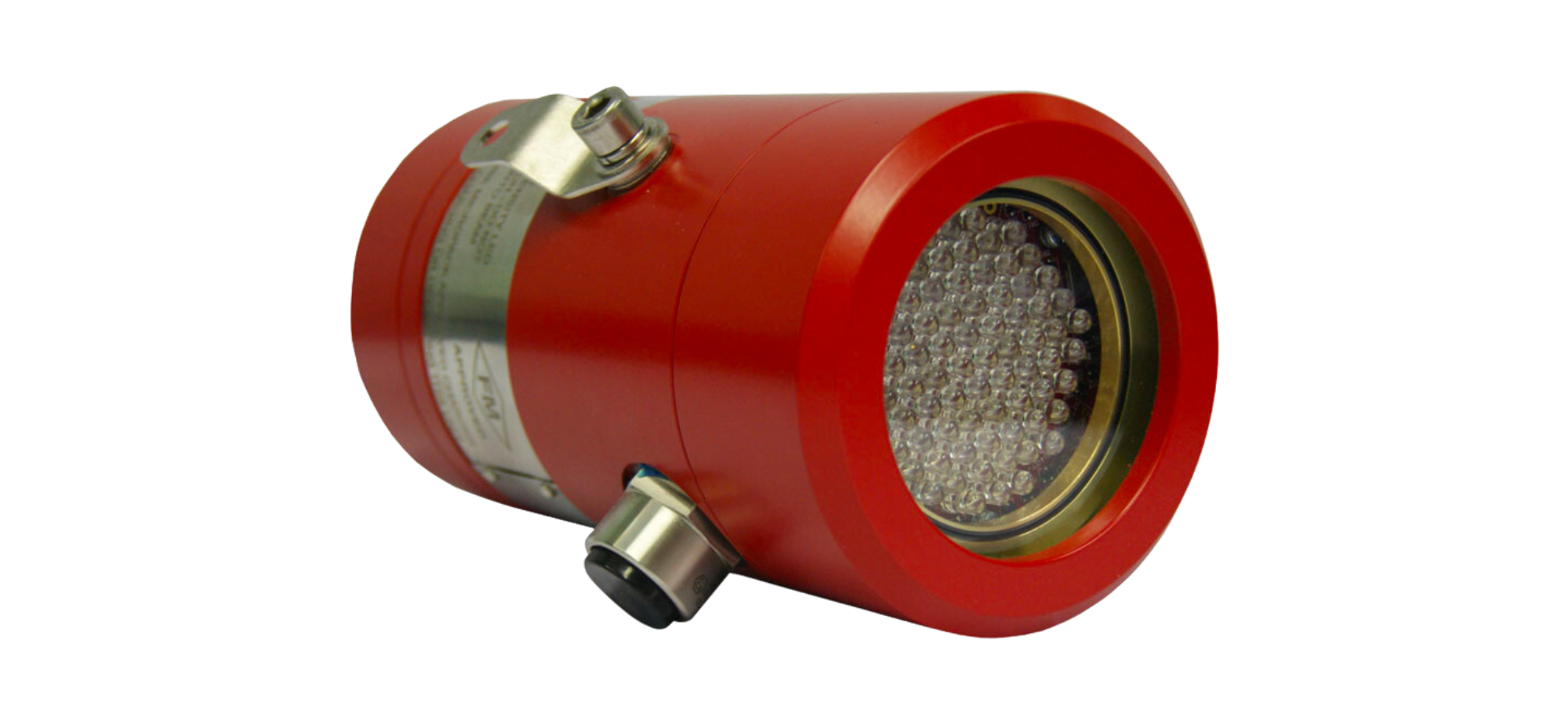

FGard H2 Flame Detector

Introducing the Fgard H2 by Crowcon, a breakthrough in Hydrogen Flame Detection. The FGard H2 delivers first-in-class flame detection with intelligent heated optics for clearer results and advanced optical verification to greatly reduce false alarms


Overview

In industries reliant on hydrogen, the inherent challenge of detecting its colorless gas and flame presents a critical safety concern. Traditional multi-spectral flame detectors are insufficient for this task, as they lack the capability to discern hydrogen flames. Fgard H2 is optimised exclusively for hydrogen flame detection, ensuring your people and your facilities are kept safe.

Fast detection time

Fgard H2 delivers unparalleled performance, with a response time of just 4 seconds. This remarkable speed is validated for a 36-inch plume size hydrogen flame at a distance of 40 meters, ensuring swift and reliable detection even in demanding industrial environments.

Heated optics

Intelligent heated optics – No condensation / ice / water.

Advanced optical verification – No reflector

Automatic test verifies cleanliness of the lens and electronic circuitry. No reflector optical check and large optical surface results in far fewer false alarms.

Reliability

Setting a new standard in reliability, Fgard H2 comes with a market-leading 5 year warranty period for a hydrogen flame detector. This commitment to quality is underscored by the endorsement of Factory Mutual (FM), validating the performance of Fgard H2.

Specification

Operating temp -60°C to +85°C (-76°F to +185°F)
Storage temp -76°F to +185°F (-60°C to +85°C)
Humidity 0-100 % RH (Non-condensing)
Operating voltage 24 Vdc Nominal – (Range 18 to 32 Vdc)
Power consumption 3W minimum (without heater), 12 W maximum (with heater).
Speed of response 2-5 seconds (Typical) at 40 m (131 feet)
Dimensions 100 mm Dia x 200 mm (4” Dia x 8” L)
Material Copper free aluminum or 316 stainless steel
Entry size 3/4 inch NPT or M25
Weight Alu 5.5 lbs (2.5 Kg) / SS 13.2 lbs (6.0kg)
Outputs Relay contacts (DPDT 2A at 30Vdc) – alarm and fault.
0-20mA plus fault alerts, HART®
Certifications Class 1 Div 1 Groups B, C, D T4 Ambient –50°C to +85°C
Class 1 Zone 1 AEx/Ex db IIC T4 Ambient –50°C to +85°C
ATEX II 2 G Ex db IIC T4
IECEx Ex db IIC T4 Ambient –60°C to +85°C
INMETRO Ex db IIC T4 – Pending
PESO Ex db IIC T4 Ta= -60°C to +85°C – Pending
Performance approvals FM 3260
EN 54-10
Ingress – IP66 /NEMA 4X
SIL2 – IEC 61508

Download

Datasheet Manual
Fgard H2 – European English Fgard H2 Full Manual Issue 1
