Product information

  • Product: Blackline Safety
  • Category: Area Monitoring
  • Product URL: EXO 8

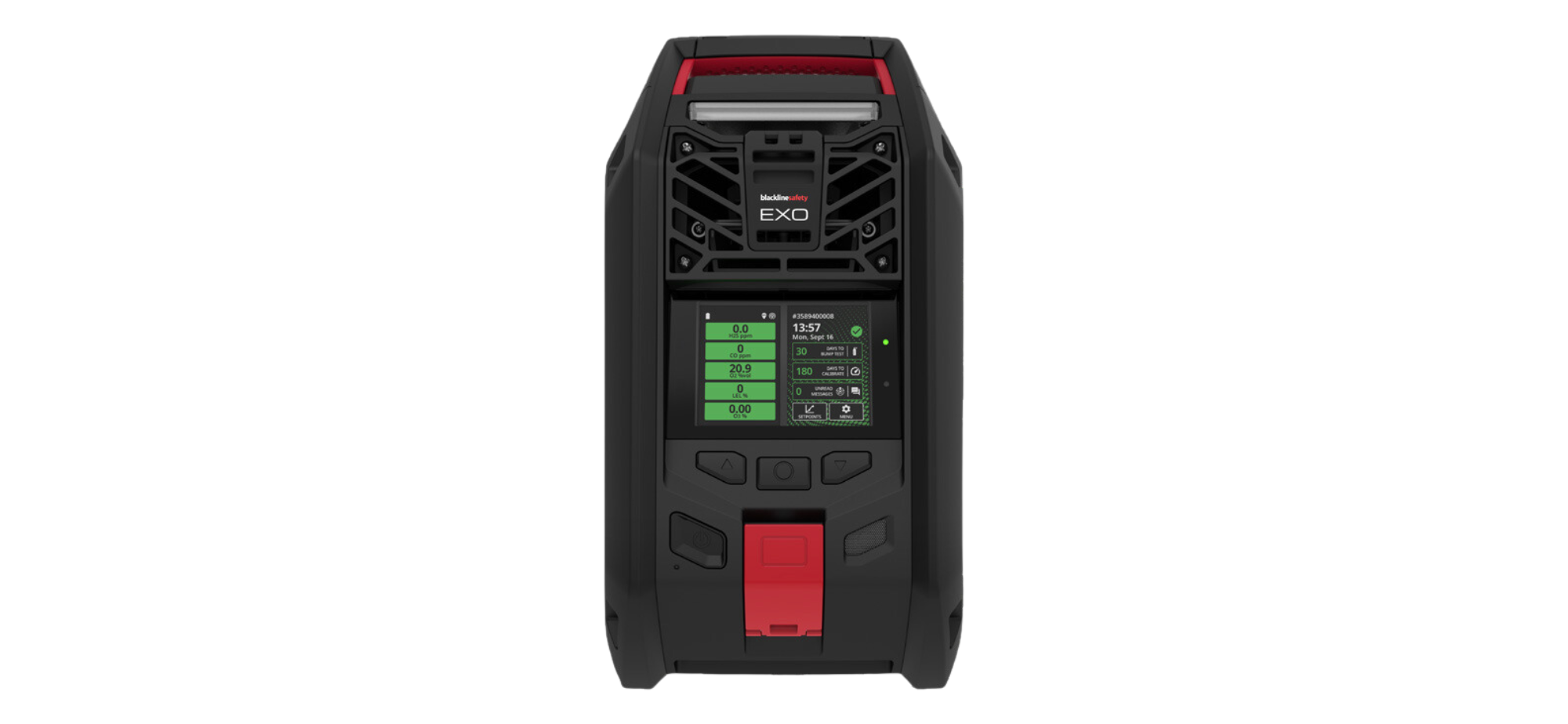

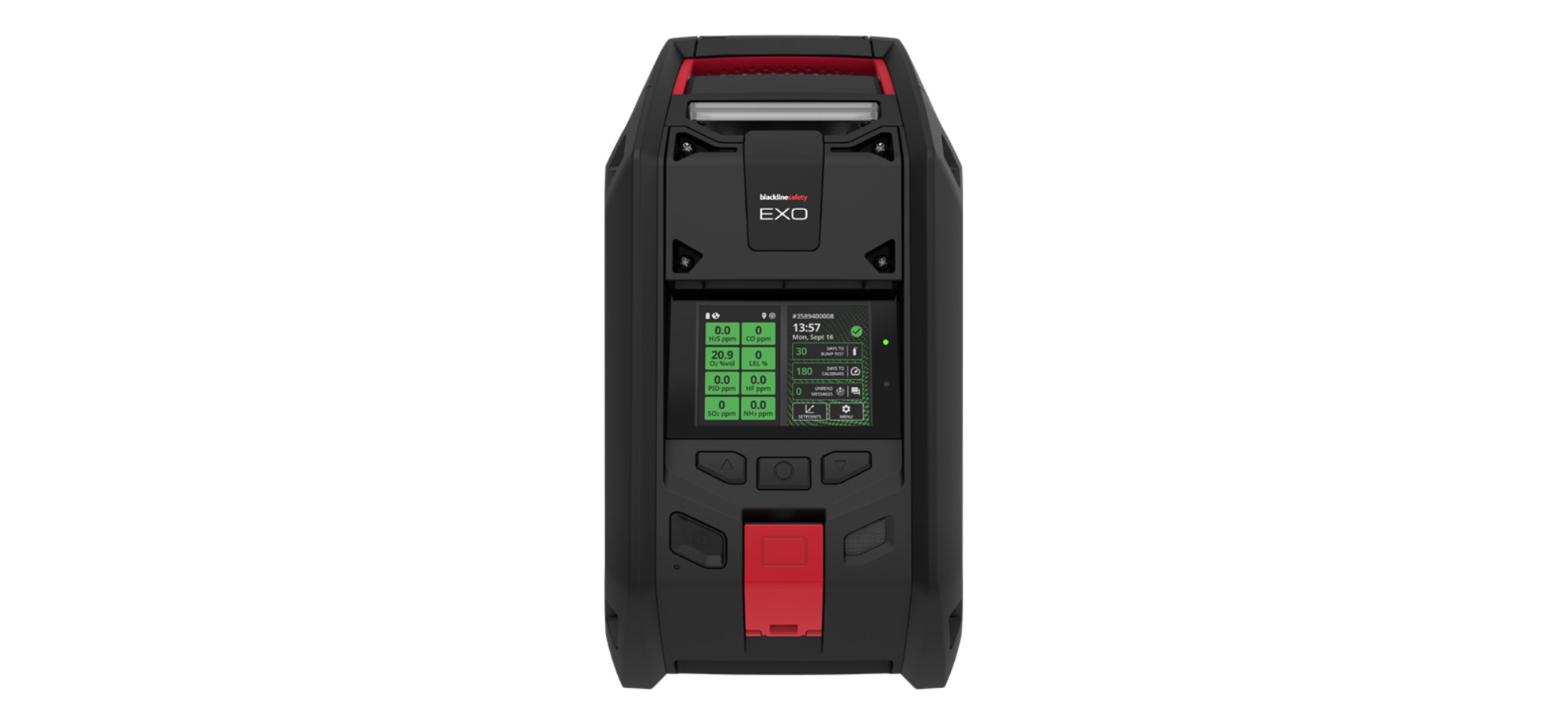

EXO 8

EXO stands as the world’s only direct-to-cloud portable area monitor, capable of detecting up to eight gases simultaneously, along with gamma radiation from three times the distance compared to other devices on the market. This advanced detection capability provides the most comprehensive protection and early hazard detection, ensuring your worksites remain safe and secure.

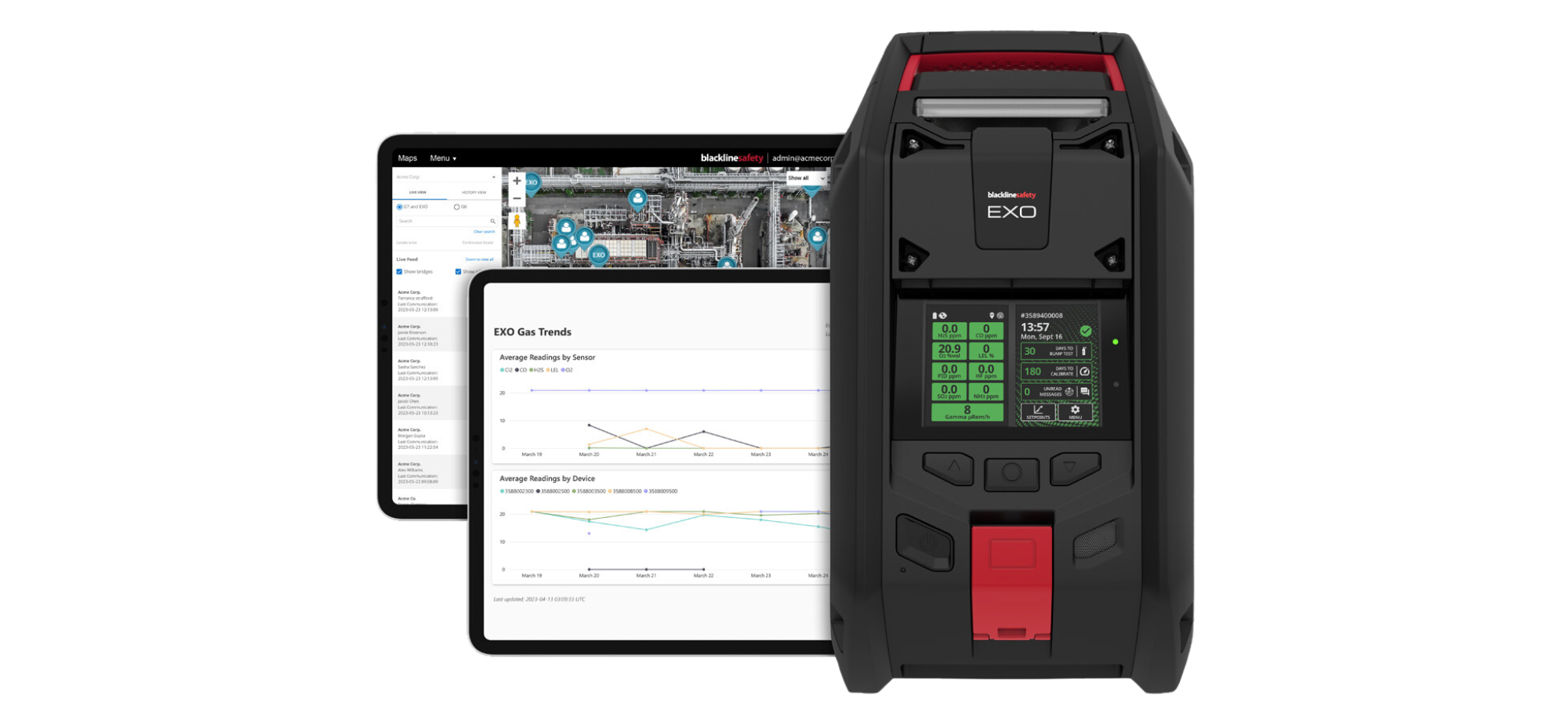

With real-time data streaming directly to the cloud, EXO delivers unmatched situational awareness and enables rapid incident response. Designed for durability and ease of use, this rugged, drop-and-go device offers up to 100 days of battery life, making it ideal for extended deployments without the need for frequent maintenance or recharging.

Robust early warning system

  • Detect up to eight gases
  • Harness the most advanced gas sensor portfolio
  • Choose additional gamma radiation monitoring
  • Share alerts with nearby active devices with proximity-based AlertLink feature
  • Expedite response times with realtime information

Unmatched reliability

  • Eliminate range limitations with cellular or optional satellite connectivity
  • Get reliable data transmission in remote or challenging environments
  • Harness industry-leading battery life of up to 100 days
  • Ensure dependable performance in any situation with tough frame design and rubberized bumpers

Hassle-free operation

  • Ready to use in minutes
  • Confirm network connectivity, location and placement status with intuitive start-up wizard
  • Simplify compliance with automatic bump and calibration service
  • Eliminate manual reporting errors with automated analytics on key metrics like usage, alerts and compliance
  • Remotely monitor up to four zones simultaneously with pumped sampling module

Specification

MATERIAL Rugged housing built from aluminum, plastic and rubberized bumpers
WEIGHT 12.25 Kg (27 lbs)
DIMENSIONS 385 mm x 188 mm x 220 mm (15.1” x 7.4” x 8.7”)
TEMPERATURE Operating: -20°C to 50°C (-4°F to 122°F)
Storage: -40°C to 60°C (-40°F to 140°F)
Humidity 15 to 90% RH Non-condensing15 to 90% RH Non-condensing
DATA Logging: Every minute
Update interval: Every 30 minutes; instantly upon high
urgency events, and every 5 seconds until event cleared
APPROVALS/STANDARDS RoHS, CE
Canada & USA: Class I Division 1 Group A,B,C,D T3; Class I
Zone 0 AEx ia IIC T3; Ex ia IIC T3 Ga
IECEx: Ex ia IIC T3 Ga
ATEX: Ex ia IIC T3 Ga
LEL Performance: CSA C22.2 No.152; ISA 12.13.01
IP RATING Designed to meet IP66
SOUND LEVELS Sounder db rating: 110 dB @ 30 cm (12 inches)
Speaker db rating: 73 db @ 30 cm (12 inches)
SENSORS Standard: 4 sensors, up to 5 gases
Optional gas expansion module: 8 sensors, up to 8 gases
LOCATION AWARENESS Multi-constellation: GPS/QZSS, Galileo, BeiDou
Receiver type: 72-channel
Assisted-GNSS: Yes
GNSS Accuracy: 5 m (16 feet), CEP 50%, 24 hours static
Optional Beacon for indoor location accuracy
CELLULAR Wireless coverage: 100 countries, 200 wireless carriers
North America: 3G/4G radio; 3G UMTS bands 2 and 5; 4G bands 2, 4 and 5
International: 2G/4G radio; 2G GSM bands E-GSM and PCS; 4G bands 3, 7 and 20
Asia Pacific: 3G/4G radio; 3G UMTS band 1; 4G bands 3, 8 and 28
Antenna: Internal
SATELLITE Optional satellite module for connecting to the Iridium satellite network
Radio: 1621 MHz, 2 Watts
Antenna: Internal
BATTERY LIFE Battery life in diffusion mode: 100 days at 20°C (68°F), LEL-MPS, H2S, CO and O2 configuration
Battery life in pump mode: 30 days at 20°C (68°F), LEL-MPS, H2S, CO and O2 configuration
GAS CARTRIDGE AND SENSORS AMMONIA (NH3): 0–100 ppm,
LCARBON DIOXIDE (CO2): 0–50,000 ppm,
CARBON MONOXIDE (CO): 0–500 ppm,
And many more

Download

Certificate Datasheet Manual
Coming Soon EXO 8 Datasheeet – EN EXO 8 Technical Manual – EN
