Product information

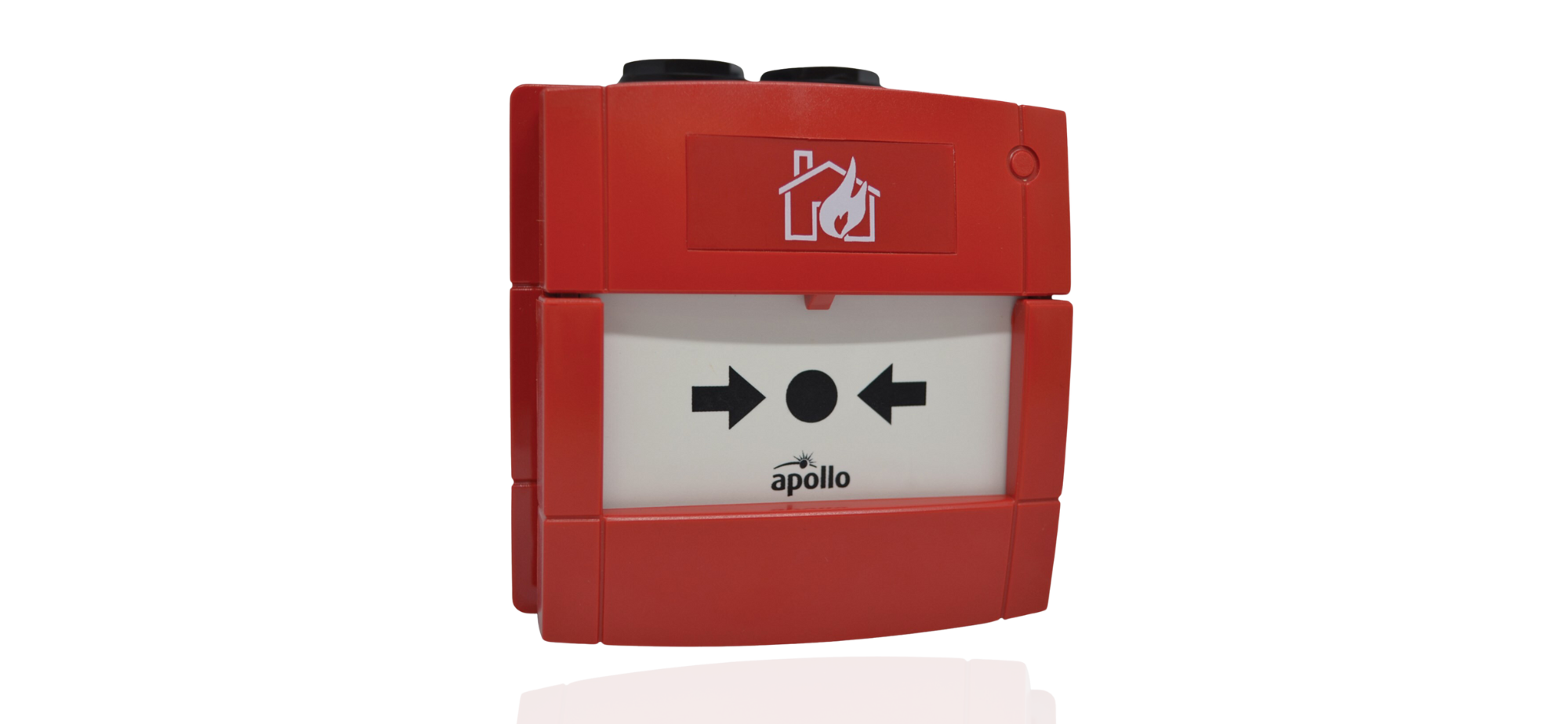

Conventional Manual Call Point - Outdoor (Without LED)

55100-003APO

The Conventional Waterproof Manual Call Point is used to manually initiate an alarm signal on the fire detection system.

  • Suitable for weatherproof applications
  • EN 54-11 Certified
  • 'Plug and Play' terminal connections for faster wiring
  • Continuity link for wiring test before commissioning

Specification

General
Warranty 3 Years
Environmental
Humidity (min) 0% RH
Humidity (max) 96% RH
Humidity Note no condensation or icing
Humidity 0% to 95% (no condensation or icing)
Operating temperature (min) -30°C
Operating temperature (max) 70°C
Operating temperature -30 to 70°C
IP rating Value IP67
Conformance
Standards EN 54-11
Mechanical
Weight 350g
Colour Red
Materials housing Polycarbonate
Product length 110mm
Product width 110mm
Product depth 74mm

Download

Datasheet Installation Guides
PP2417 Conventional Manual Call Point Datasheet Conventional Manual Call Point Installation Guide
