Product information

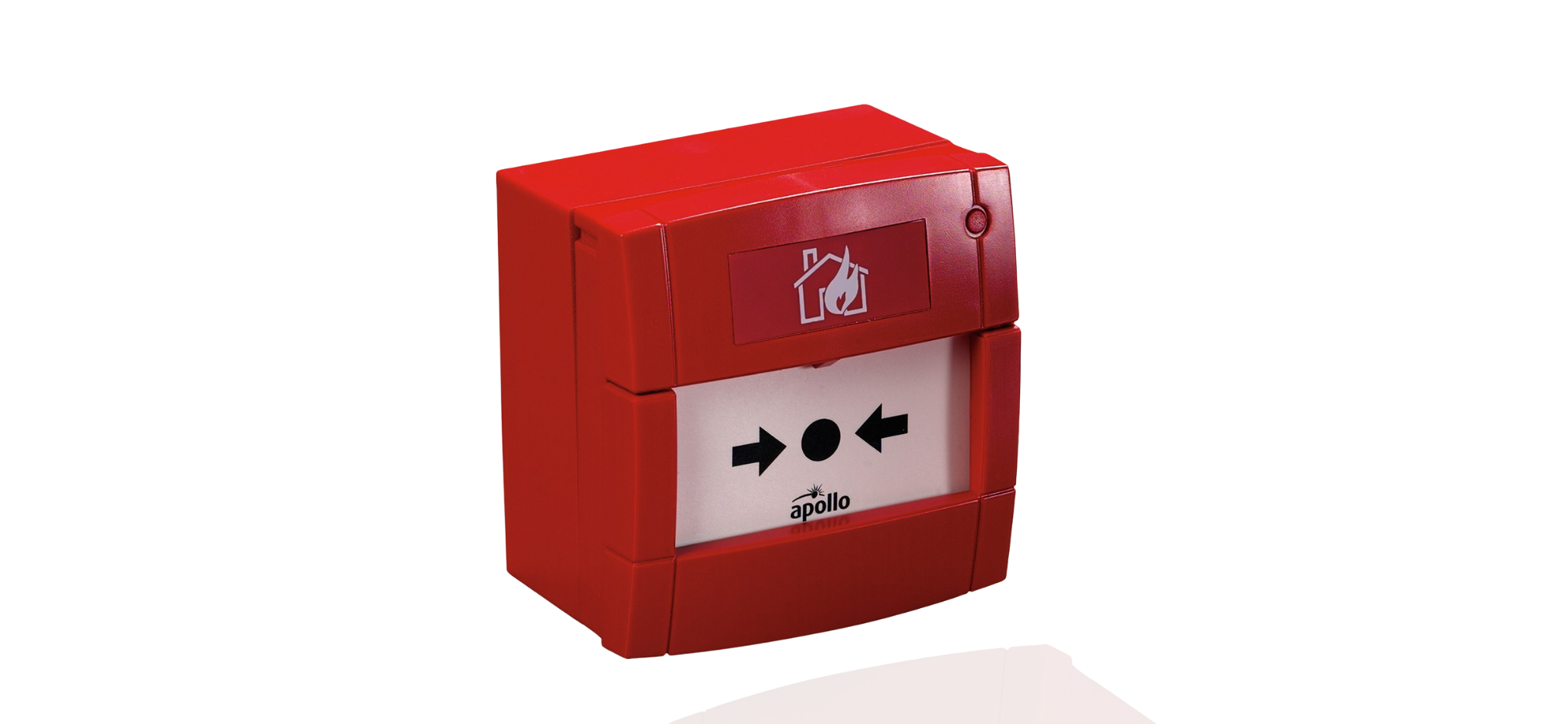

Conventional Manual Call Point (Without LED)

55100-001APO

The Conventional Manual Call Point is used to manually initiate an alarm signal on the fire detection system.

  • EN 54-11 Certified
  • 'Plug and Play' terminal connections for faster wiring
  • Continuity link for wiring test before commissioning
  • Suitable for semi flush or surface mounting

Specification

General
Warranty 10 Years
Environmental
Humidity (min) 0% RH
Humidity (max) 93% RH
Humidity Note no condensation or icing
Humidity 0% to 95% (no condensation or icing)
Operating temperature (min) -10°C
Operating temperature (max) 55°C
Operating temperature -10 to 55°C
IP rating Value IP24D
Conformance
Standards EN 54-11
Mechanical
Weight 180g
Colour Red
Product length 89mm
Product width 93mm
Product depth 60mm
Key type KAC Manal Call Point test & reset key

Download

Datasheet Installation Guides
PP2417 Conventional Manual Call Point Datasheet Conventional Manual Call Point Installation Guide
