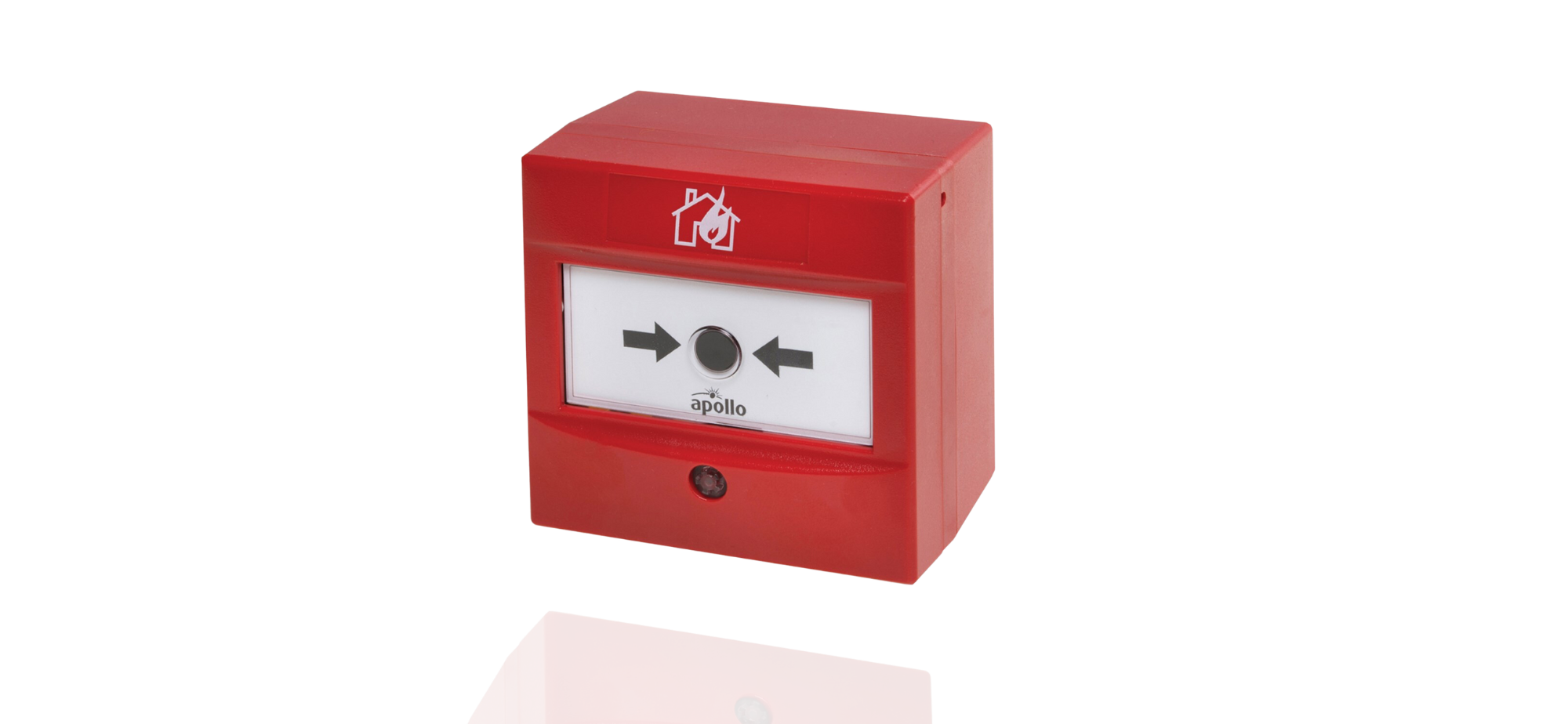

Conventional Manual Call Point

SC2900-001APO

The Manual Call Point is used to manually initiate an alarm signal on the fire detection system.

Brand Features

• Wide-operating voltage of 9–33 V DC
• Wide-operating and storage temperature of -20°C to +60°C
• Can be used on security systems
• Electrically and mechanically compatible with Series 60
• Proven detection performance

Specification

General
Warranty Wireless	10 Years No
Performance
Operating element	Resettable element
Action	Single
Environmental
Humidity (min)	0% RH
Humidity (max)	95% RH
Humidity Note	no condensation or icing
Humidity	0% to 95% (no condensation or icing)
Operating temperature (min)	-40°C
Operating temperature (max)	70°C
Operating temperature	-40 to 70°C
IP rating Value	IP44
Conformance
Approvals	CPR
Mechanical
Weight	150g
Colour	Red
Product length	90mm

Download

Datasheet	Installation Guides
PP5088 Conventional Manual Call Point	Conventional Manual Call Point Installation Guide
