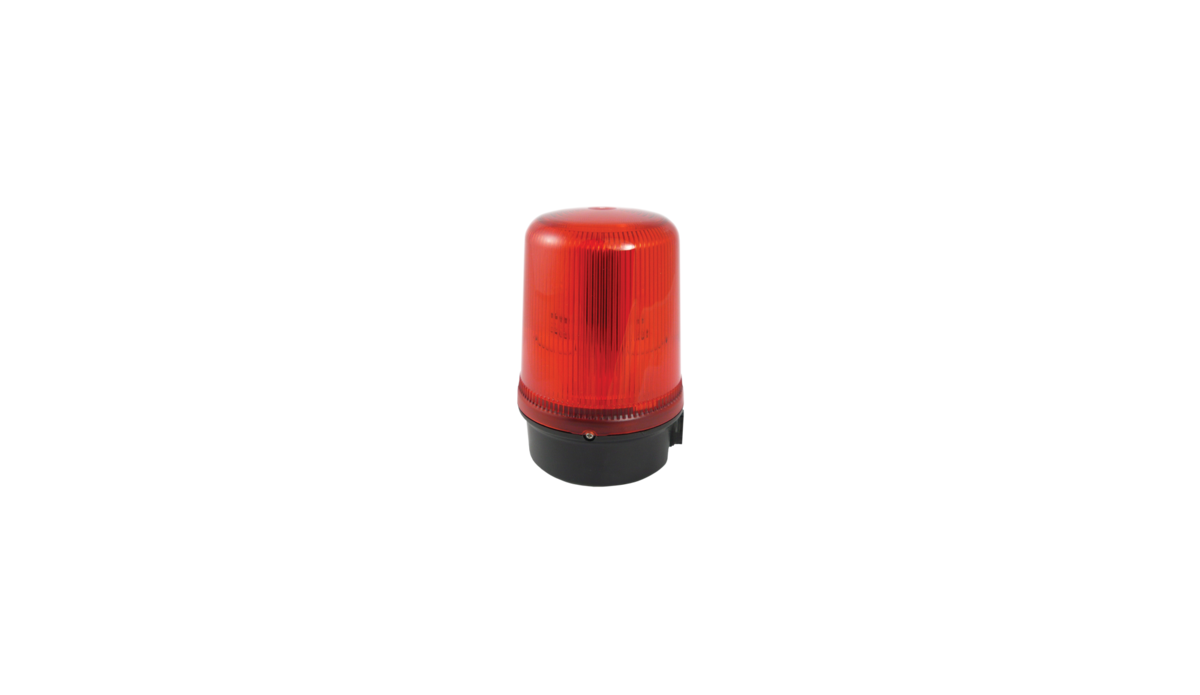

The surface mount base can also be supplied with a right angle bracket or with a pole mounted assembly.
| Light source: | Array of 16 High output L.E.D.’s |
| Functions: | 4 rotating configurations. 4 flashing configurations. Steady mode for status applications. |
| Peak/Effective Intensity cd: | 19 cd* – measured ref. to I.E.S. |
| Lens colours: | Amber, Blue, Clear (White L.E.D.), Green, Red & Yellow |
| Lens type: | Prismatic (standard) or plain |
| Mounting: | Surface mount (right angle or pole mount accessories available) |
| Entries: | 1 × 5-7mm push through grommet 1 x M20 cable entry |
| Dimensions: | ø100 x 150mm |
| Ingress protection: | IP65 |
| Housing material: | High impact UL94 V0 (f1) PC |
| Lens material: | High impact UL94 V0 (f1) PC |
| Terminals: | 1.5 mm² flying lead assembly |
| Operating temp: | -25 to +50°C [-13 to +122°F] |
| Storage temp: | -40 to +70°C [-40 to +158°F] |
| Relative humidity: | 90% at 20°C [68°F] |
| Weight: | 370g/0.81Ibs |
*Candela measurements representative of performance with clear lens at optimum voltage
