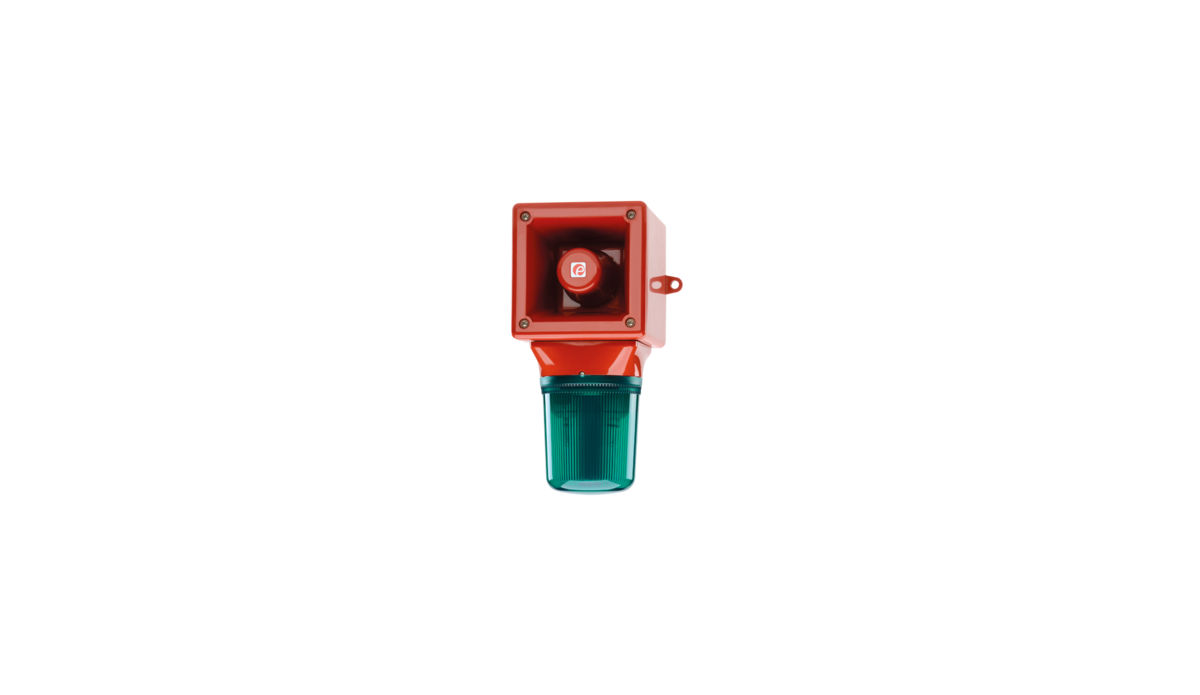

The beacon and sounder can be operated from the same power source or controlled individually.
| Sounder: | |
| Maximum output: | 112dB(A) @ 1 metre [103dB(A) @ 10ft/3m] |
| Nominal output: | 105dB(A) @ 1m +/- 3dB – Tone 2* [96dB(A) @ 10ft/3m] |
| No. of tones: | 32 (UKOOA / PFEER compliant) |
| No. of stages: | 3 |
| Volume control: | Max. 105dB(A); Min. 96dB(A) – Tone 2 |
| Effective range: | 60m/197ft @ 1KHz |
| Stage switching: | Negative Reverse polarity stage switching on DC units. |
| Beacon: | |
| Light source: | Array of 16 multi-function high power L.E.D’s |
| Operating modes: | 4 rotating configurations 4 flshing configurations Steady mode for indicator / status applications |
| Peak/Effective Intensity cd: | 19 cd* – measured ref. to I.E.S. |
| No. of stages: | DC unit also features a remotely selectable 2nd stage flash pattern. |
| L.E.D /l ens colours: | Amber Blue, Green, Red and White |
| General: | |
| Voltages DC: | 24V dc (10-30V dc); 48V dc (35-60V dc) |
| Voltages AC: | 115V ac; 230V ac |
| Ingress protection: | IP65 |
| Enclosure material: | High impact UL94 V0 & 5VA FR ABS |
| Lens material: | UV stable PC UL94 V0 FR Bayonet lens fixing , Anti-tamper locking screw. |
| Enclosure colour: | Red (RAL3000) and grey (RAL7038) |
| Cable entries: | 2 x M20 clearance gland entries in side & back |
| Terminals: | 0.5 to 1.5mm² cables. |
| Operating temp: | -25 to +55°C [-13° to +131°F] |
| Storage temp: | -40 to +70°C [-40° to +158°F] |
| Relative humidity: | 90% at 20° [68°] |
