Product information

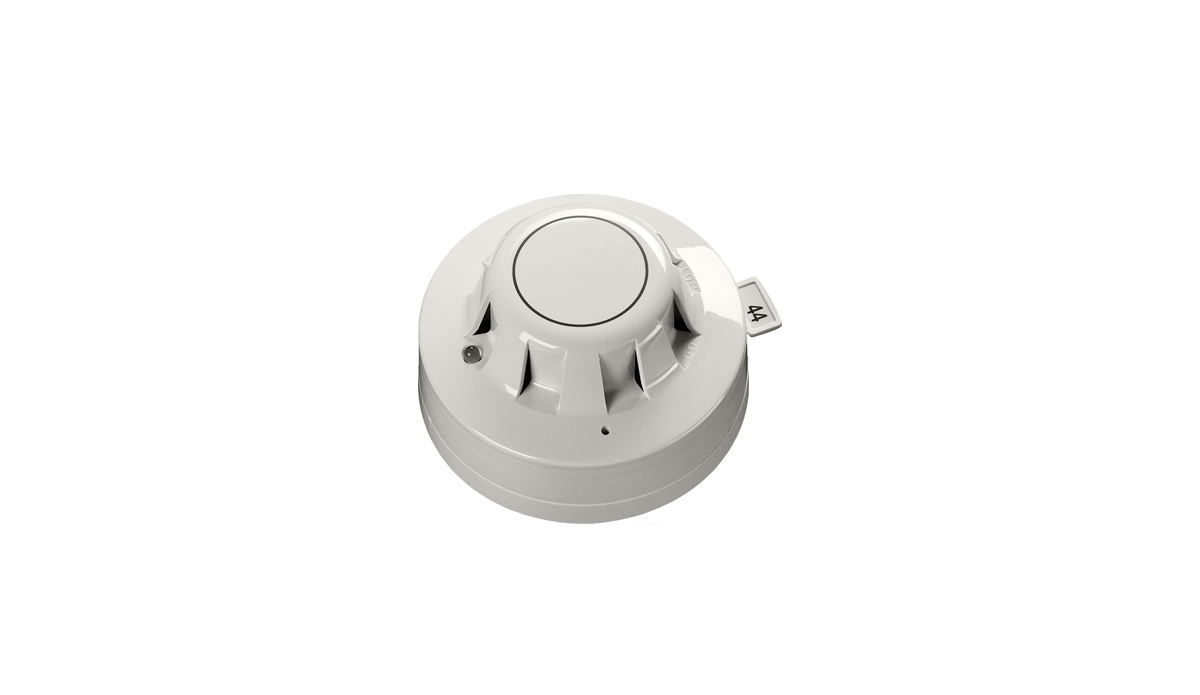

XP95 Optical Smoke Detector

The XP95 Optical Smoke detector uses an internal pulsing infrared LED and a photo-diode at an obtuse angle.

Brand Information

The XP95 range of analogue addressable fire detectors uses tried and trusted technology to give the best performance, and has unique features that benefit the installer and the end user. It is suitable for medium-to-large applications with simple installation requirements.

As it operates using digital communication, XP95 has a high immunity from corruption, and is, therefore, often preferred in a large system where life safety is critical. XP95 products are frequently used in commercial, industrial, financial, government, IT/telecoms and healthcare applications.

Brand Features

  • Alarm flag for fast alarm reporting
  • Alarm address for fast location of alarm
  • XPERT 7 Card addressing
  • Electronics-free base
  • Easy installation
  • Elegant design

Specification

General
Applications Escape routes, Hotels, Offices, Restaurants, Retail, Medium to large buildings, Bedrooms
Fire Type Slow burning, smouldering fires
Warranty 10 year
Performance
Analogue value nominal 7
Analogue value (- tolerance) 7
Analogue value 25 +7/-7
Alarm level analogue value 55
Chamber type Chevron
Electrical
Protocol voltage (min) 5V
Protocol voltage (max) 9V
Protocol voltage 5 to 9V peak to peak
Power-up surge current 1mA
Maximum power-up time 4 seconds
Status indicator - Alarm Red
Status indicator - Fault Off
Quiescent current 250μA
Quiescent current 340μA
Sampling frequency Once per second
Sampling frequency +L2 Loop in & out positive, double terminal
Terminal functions L1 in -L1 in Loop in & out, double terminal
Terminal functions +R +R Remote indicator positive connection
Terminal functions -R -R Remote indicator negative connection
Polarity L1 & L2 are polarity insensitive
Battery powered No
Environmental
Humidity (min) 0% RH
Humidity (max) 95% RH
Humidity Note no condensation or icing
Humidity 0% to 95% (no condensation or icing)
Operating temperature (min) -20°C
Operating temperature (max) 60°C
Operating temperature -20 to 60°C
IP rating Value IP44
Effect of wind speed None
Storage temperature (min) -30°C
Storage temperature (max) 80°C
Storage temperature -30 to 80°C
Conformance
Standards EN 54-7
Approvals CPR, KRS, ABS
Mechanical
Weight 105g
Colour White
Materials housing Polycarbonate
Materials terminals Nickel plated stainless steel
Product length 42mm
Product diameter 100mm
Detection principle Photo-electric light scattering
Sensor configuration Horizontal optical bench housing infra-red emitter and sensor, arranged radially to detect forward scattered light

Download

Certificate Datasheet Product Guides
ABS - American Bureau of Shipping PP2610 XP95 Optical Smoke Detector Data Sheet PP1039 XP95 EPG
KRS - Korean Register of Shipping
CPR - Certificate of Constancy of Performance
