Product information

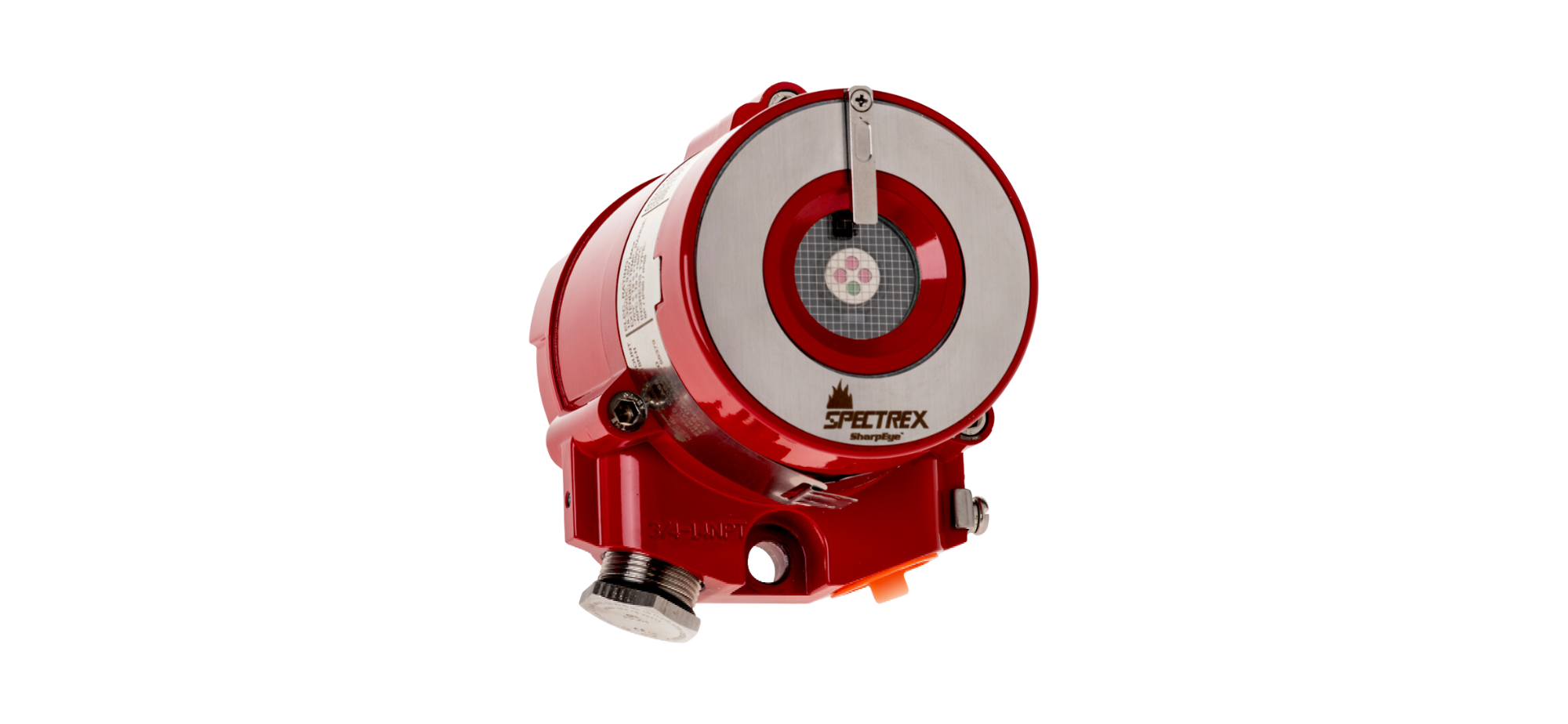

40/40C-I Multispectrum Quad-Sense Flame Detector

The SharpEye 40/40C-I, a multispectrum QuadSense IR flame detector, provides long distance detection of hydrocarbon fires at up to 215 ft. (65 m), fast detection in under five seconds.

Featuring wide operation temperature range in extreme weather conditions with strengthened reliability, the 40/40C-I is based on proven Triple-IR (IR3) technology, ensuring high sensitivity with superior immunity to false alarms to keep a SharpEye on your safety!.


Features and Benefits

Multi-Spectrum Quad-Sense flame detector - integrating four IR sensors to further improve differentiation of flame sources from non-flame background radiation.

  • Advanced long distance detection of hydrocarbon-based fuel and gas fires at up to 215 ft. (65 m)
  • Fast detection, under five seconds
  • Proven false alarm immunity
  • Unparalled reliability - 150,000 hours MTBF
  • Best in class temperature range: -40 to +185 °F (-40 to +75 °C)
  • Enhanced durability backed up by with three-year warranty
  • Five sensitivity levels, adapting to any application
  • Smart field of view integrity test, allowing flawless operation
  • Innovative IR Built-In-Test - continuously validating the optical integrity and the electronic circuitry
  • Multiple output options for maximum compatibility with standard infrastructures
  • Plug-and-Play - factory calibrated for immediate use in any fire detection system
  • Universal wiring option for fast ordering process
  • Two mode heated optics for impeccable performance in challenging environmental conditions
  • Worldwide and regionally certified for hazardous areas
  • Performance and reliability approved by recognable certification bodies
  • SIL3 compatible
  • Internal log event recorder to analyze past events
