Gas-Pro TK Dual Range Portable Monitor for Tank Gas Monitoring

Gas-Pro TK dual range portable monitor is ideal at any flammable gas concentration it uses the best sensor technology to reliably monitor inerted tank environments - dual IR. Gas-Pro TK is designed for use in this specialist environment where standard gas detectors just won’t work, whether tank purging or gas freeing.

Gas-Pro TK dual range portable monitor measures the concentration of flammable gas in inerted tanks. Available for methane, butane and propane, Gas-Pro TK uses a dual IR sensor – the best technology for this specialist environment, which means Gas-Pro TK dual IR:

• Isn’t inhibited by high hydrocarbon concentrations unlike catalytic bead sensor
• Measures gas in high %vol as well as %LEL concentration, which single IR sensors can’t
• auto-ranges switch between %vol and %LEL measurement, so always operating to correct parameter

Gas-Pro TK keeps you up-to-the moment with on oxygen concentrations in the tank; telling you when the oxygen level is are

• low enough to load and store fuel safely
• high enough for safe tank entry

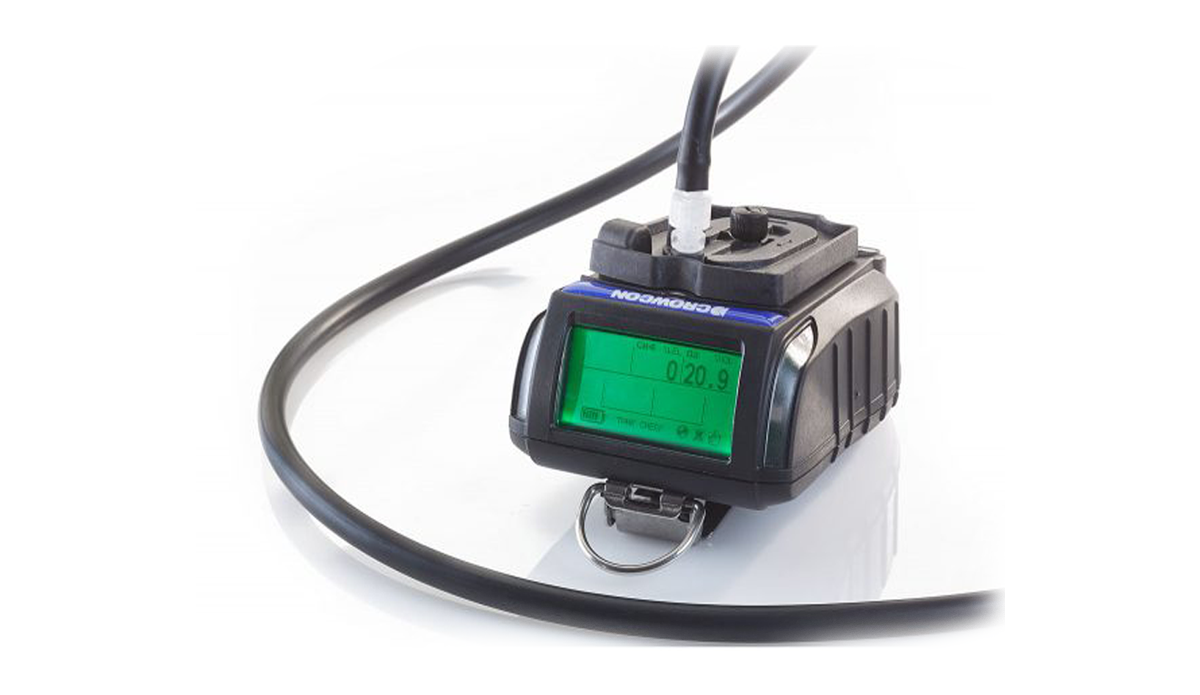

Tanks can be sampled quickly from their top, middle or base, due to an integrated pump which draws samples through a line up to 30m long.

Offering detection of up to 5 gases in a compact and rugged solution, Gas-Pro has an easy-to-read top mount display combining ease of use and user focused features. At 340g, it is light enough to clip to your belt or overalls, so it easy for the technician to keep with them during their working day.

Personal protection monitor

Gas-Pro TK is an extension of the Crowcon Gas-Pro range. Therefore, in addition to its superb Tank Check capabilities, it also offers the full personal gas detection and confined space pre-entry check functionalities provided by other Gas-Pro detectors.

Accessories

Gas-Pro TK is complemented by a range of accessories including:

• Multiple charging options
• Pumped flow plate
• Chest harness straps
• Portables Pro 2.0 software for accessing advanced features and data logs

Specification

Size	43 x 130 x 84mm (1.7 x 5.1 x 3.3in)
Weight	340 g (11.9 oz)
Alarm	95 db Integrated Red and BLue LEDs

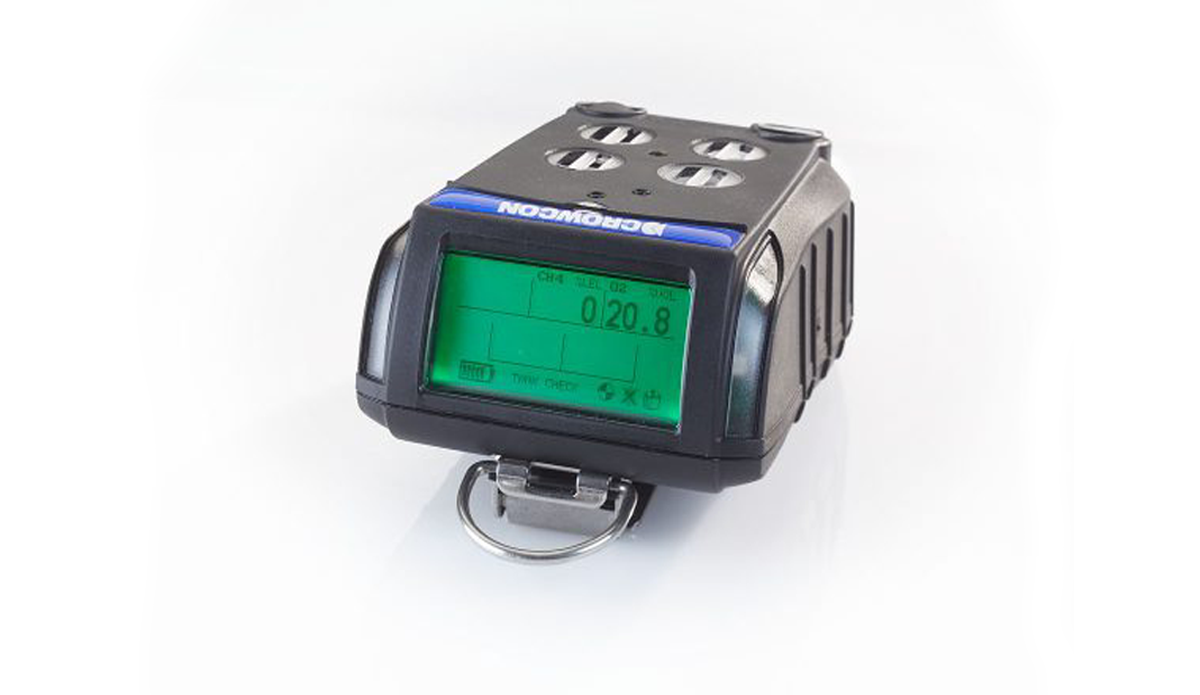

Display	Bright top mounted display can be viewed while worn
Logging	125h data @ 10s intervals 1000
Battery	13 hour typical runtime (4 sensors, pump running) 7.5 hours recharge
Sampling	Internal pump with 30m draw
Environment	-20°C to + 55°C (-4°F to +131°F) 10-95% RH non-condensing Independently tested for IP65 and IP67
Compliance	EMC 2014/30/EU ATEX 2014/34/EU
Approvals	Ex II 2 G Ex d ia IIC t4 Gb Tamb -20°C to + 55°C Ex d ia IIC T4 Gb Tamb -20°C to + 55°C Gas detector in hazardous locations Class 1 Div 1 Group A,B,C,D only as to intrinsic safety Ex d ia IIC T4 Ga Tamb -20°C to + 55°C Llyoids Certificate Number MED 1500009/M2
Accessories included	Integrated Alligator clip and tethering loop Calibration plate

Download

Certificate	Datasheet	Manual
MED certificate	Gas-Pro TK – English	Gas Pro manual – see pages 19, 30 and 34 for Gas-Pro TK instructions
MED certificate 2	Gas-Pro TK – US English (Letter Size)
ATEX Gas-Pro Certificate
ATEX Certificate (Charging and communication cables)
IECEx Certificate (Charging and communication cables)
